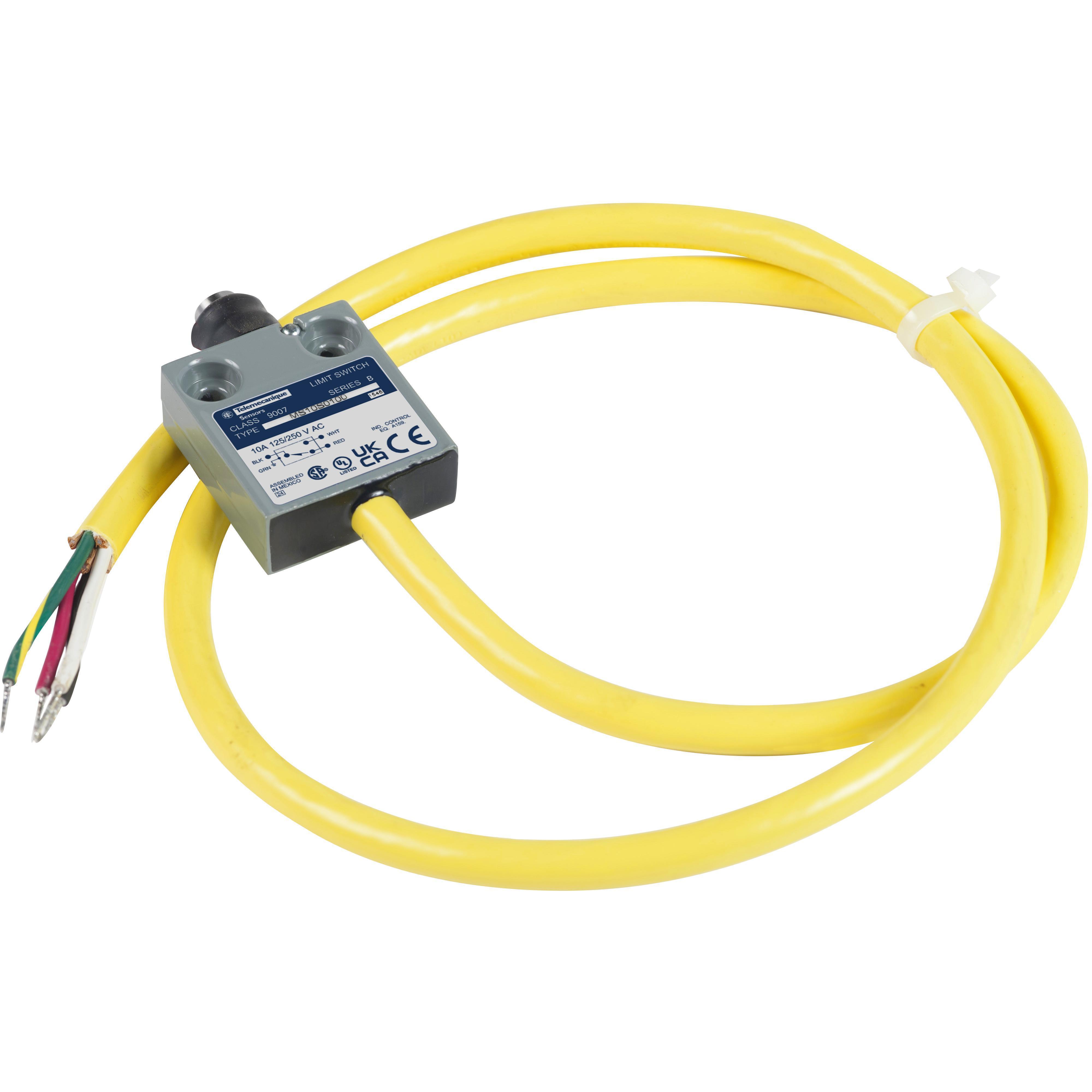

Square D™ 9007MS10S0100 9007MS/ML Miniature Potted Linear Plunger Actuated Limit Switch, 240 V AC/28 V DC, 10 A, Spring Return Plunger Actuator, 1CO SPDT Contact, 1 Pole
Sku #78590131971
MFG #9007MS10S0100
Attributes
| Type: | Miniature Potted Linear |
| Voltage Rating: | 240 V AC/28 V DC |
| Contact Configuration: | 1CO SPDT |
| Series: | 9007MS/ML |
| Amperage Rating: | 10 A |
| Contact Rating: | 3 A at 240 V AC/5 A at 28 V DC |
- Material Working, Packaging, Materials Handling, Conveying, Food, Beverage, Mining, Mineral Constructions, Oil and Gas, Crane/Hoisting, Mill and Foundry Applications
- 9007MS heavy duty metal miniature enclosed switches, potted and pre-wired with cable, 39 mm
- Heavy-duty industrial switch designed to meet domestic and international standards
- Miniature enclosed switches, potted and pre-wired with cable
- 6 A 120 VAC at A300 NEMA rating designation, 3 A 240 VAC at A300 NEMA rating designation, 5 A 28 VDC
- ECCN EAR99|CE Marked|CSA Certified|IEC 60068-2-6|IEC 60068-2-27|IEC 60529|REACH Compliant|RoHS Compliant|UL 508|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP) which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
