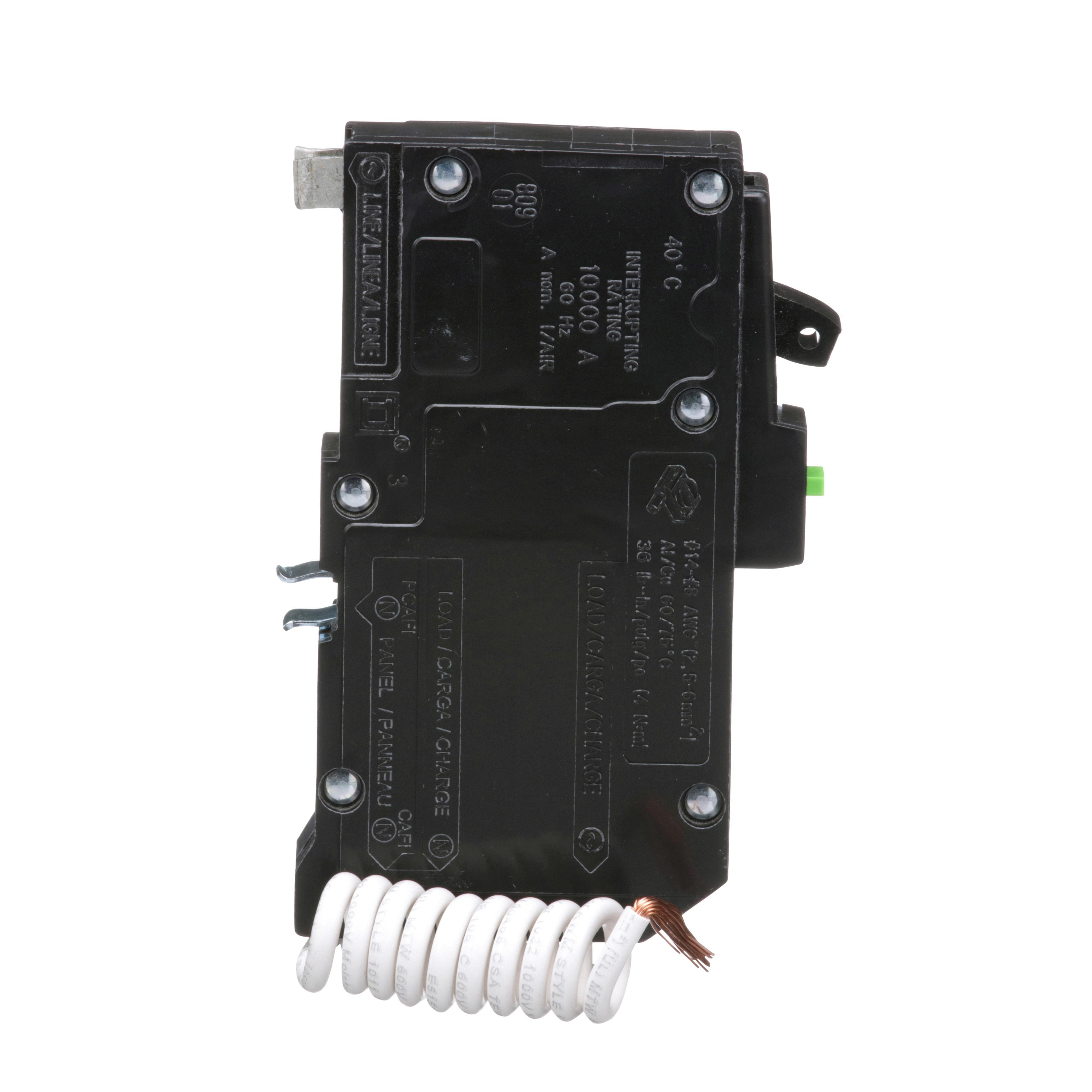

Square D™ QO120AFI Combination Miniature Arc Fault Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Sku #78590130130
MFG #QO120AFI
Attributes
| Voltage Rating: | 120 V AC |
| Frequency Rating: | 50/60 Hz |
| Frame: | QO/100 A |
| Amperage Rating: | 20 A |
| Interrupt Rating: | 10 kA |
| Trip Type: | Thermal Magnetic |
- An arc fault circuit breaker opens the circuit and stops the arcing and high intensity heat before a fire is likely to ignite
- Special microprocessor based arc identification to differentiate necessary operational arcs (associated with loads such as electric motors, switches and receptacles) from actual arc faults which can cause damage and fires
- Differentiate true arc faults from chopped wave-forms associated with switched mode power supplies on electrical appliances, computers and lamp dimmers
- 14 to 8 AWG Cu, 12 to 8 AWG Al wire
- K-Curve trip
- https://youtu.be/YnLmpnZlKv0
- For providing overload and short circuit protection designed to detect arc faults
- Buy American Act Compliant|CSA 22.2 #5|RoHS Compliant|UL 489|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
