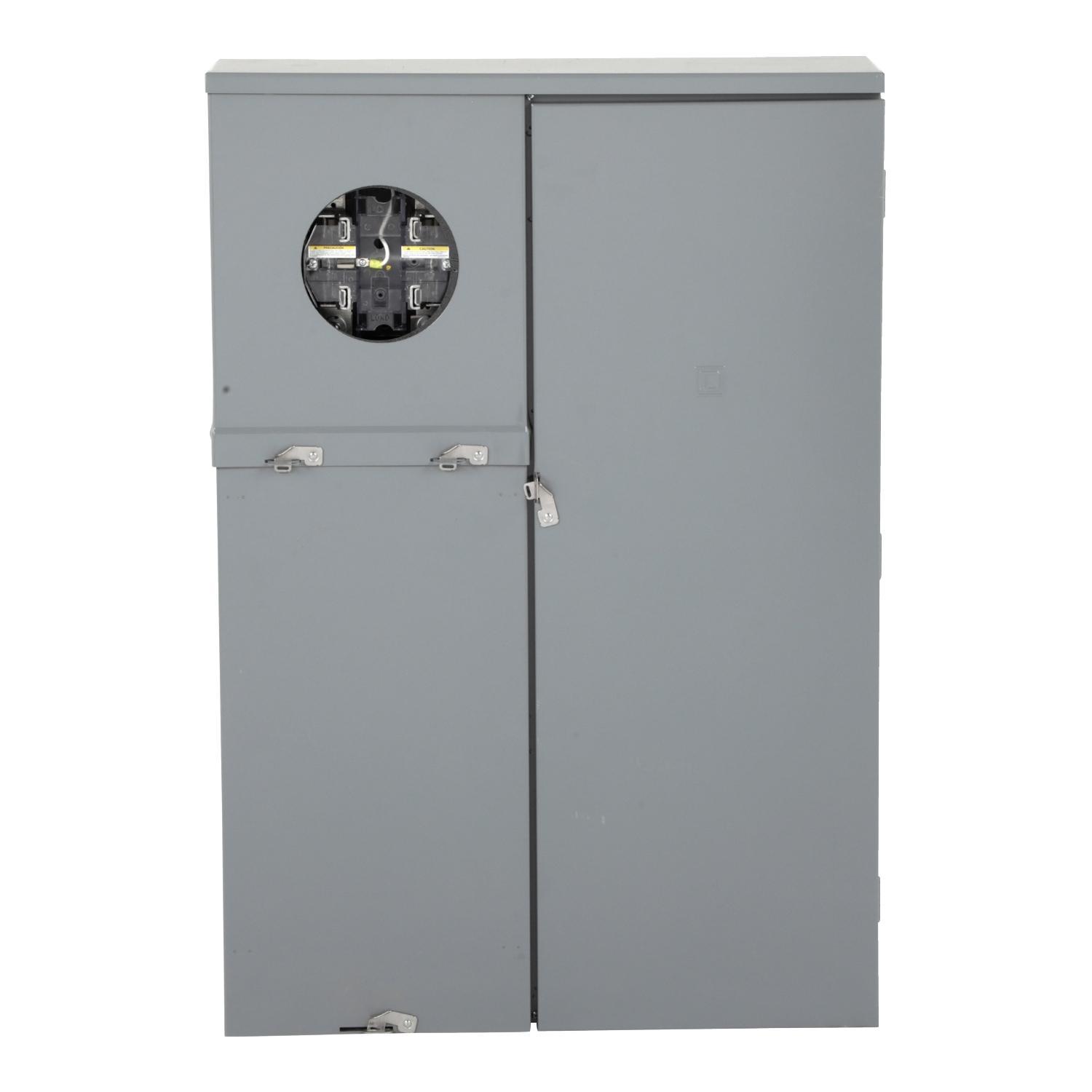

Square D™ QO™ QU816D400CLX 8-Space 16-Circuit All-in-One Field Installed Rainproof Combination Service Entrance Meter Main With 2-Piece Class 320 Lever Bypass and Field Installed Flange Kit, 120/240 V AC, 400 A, 1 Phase, NEMA 3R Enclosure
Sku #78590129940
MFG #QU816D400CLX
Attributes
| Type: | 8-Space 16-Circuit All-in-One Field Installed Rainproof |
| Amperage Rating: | 400 A |
| Feed Type: | Underground |
| Voltage Rating: | 120/240 V AC |
| Phase: | 1 |
| Wire Size: | 4 AWG to 250 kcmil |
- 18 months
- UL Listed|EUSERC Approved|Federal Specification W-P-115C|PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov
- Load Side Feed-Through Lugs
- QO ringless meter mains support standard utility meters and a main disconnect breakers
- This single compact solution provides a time and space saving solution for contractors and installers
- Suitable for use as service entrance equipment
- CSED allows for the meter socket to integrate with the load center into one compact design
Square D™Square D™ QO™ QU816D400CLX 8-Space 16-Circuit All-in-One Field Installed Rainproof Combination Service Entrance Meter Main With 2-Piece Class 320 Lever Bypass and Field Installed Flange Kit, 120/240 V AC, 400 A, 1 Phase, NEMA 3R Enclosure
SKU #78590129940
MFG #QU816D400CLX
