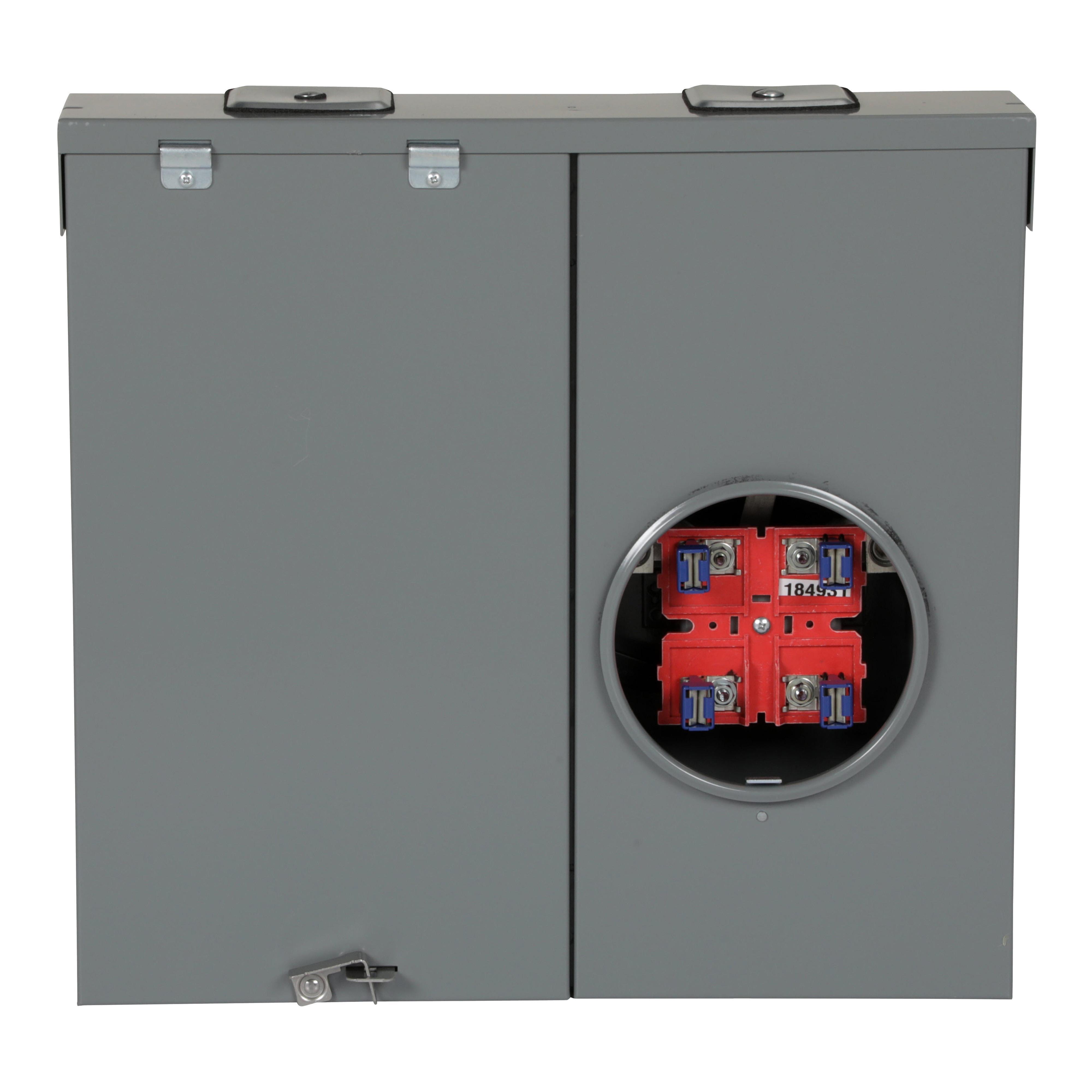

Square D™ QO™ C2M200S 2-Circuit Field Installed Rainproof Combination Service Entrance Meter Main, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Sku #78590129177
MFG #C2M200S
Attributes
| Type: | 2-Circuit Field Installed Rainproof |
| Amperage Rating: | 200 A |
| Feed Type: | Overhead/Underground |
| Voltage Rating: | 120/240 V AC |
| Phase: | 1 |
| Wire Size: | 4 AWG to 250 kcmil, 8 to 2/0 AWG Aluminum/Copper |
- Multiple disconnect units can accommodate plug-on surge breaker™ secondary surge arrester
- Multiple disconnect units can be converted to semi-flush with addition of flange kit
- 4 AWG to 250 kcmil aluminum/copper line side, (2) 8 to 2/0 AWG aluminum/copper service ground lug
- Without bypass
- Residential, Service Equipment and Compact Design Applications
- RoHS Compliant|UL 50|UL 67|UL 414 File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
