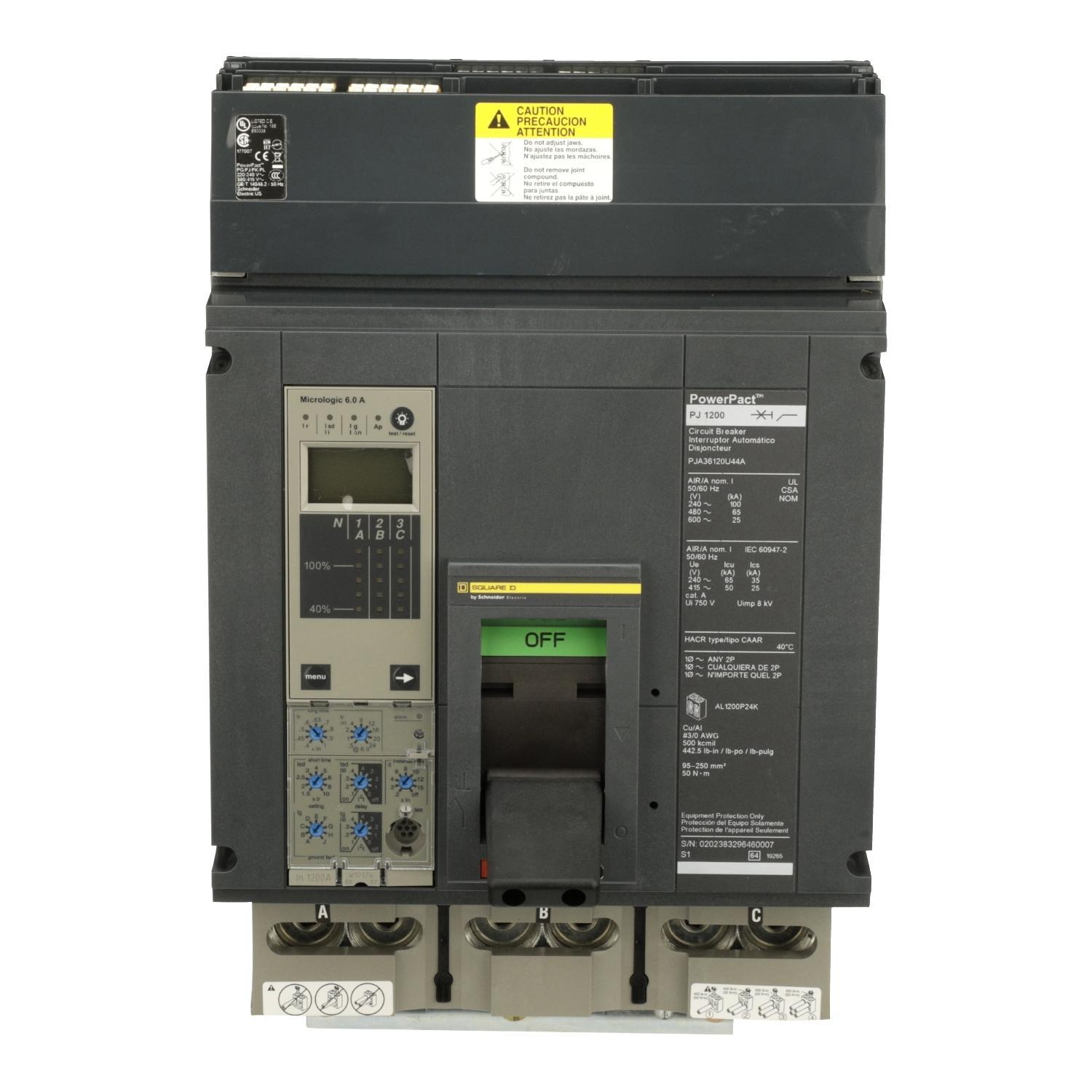

Square D™ I-Line™ PowerPact™ PJA36120U44A Type PJA Molded Case Circuit Breaker, 600 V AC, 1200 A, 100 kA at 240 V AC, 65 kA at 480 V AC, 25 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip

Sku #78590128227

MFG #PJA36120U44A

Attributes

Type:	Type PJA
Amperage Rating:	1200 A
Interrupt Rating:	100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC

Voltage Rating:	600 V AC
Frequency Rating:	50/60 Hz
Frame:	P

Common mounting holes, handle locations and trim dimensions for design standardization
Common accessories across the range
Used as main panel disconnect for control panel
https://www.youtube.com/watch?v=7QHCUy5_CuE

Construction, Commercial Buildings, Oil and Gas, Marine, Industrial Buildings, Control and Monitoring, Water Wastewater, Healthcare Facilities, Data Centers and Educational Campuses Applications

UL 489|CSA Certified|NMX Certified|IEC Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|RoHS Compliant
