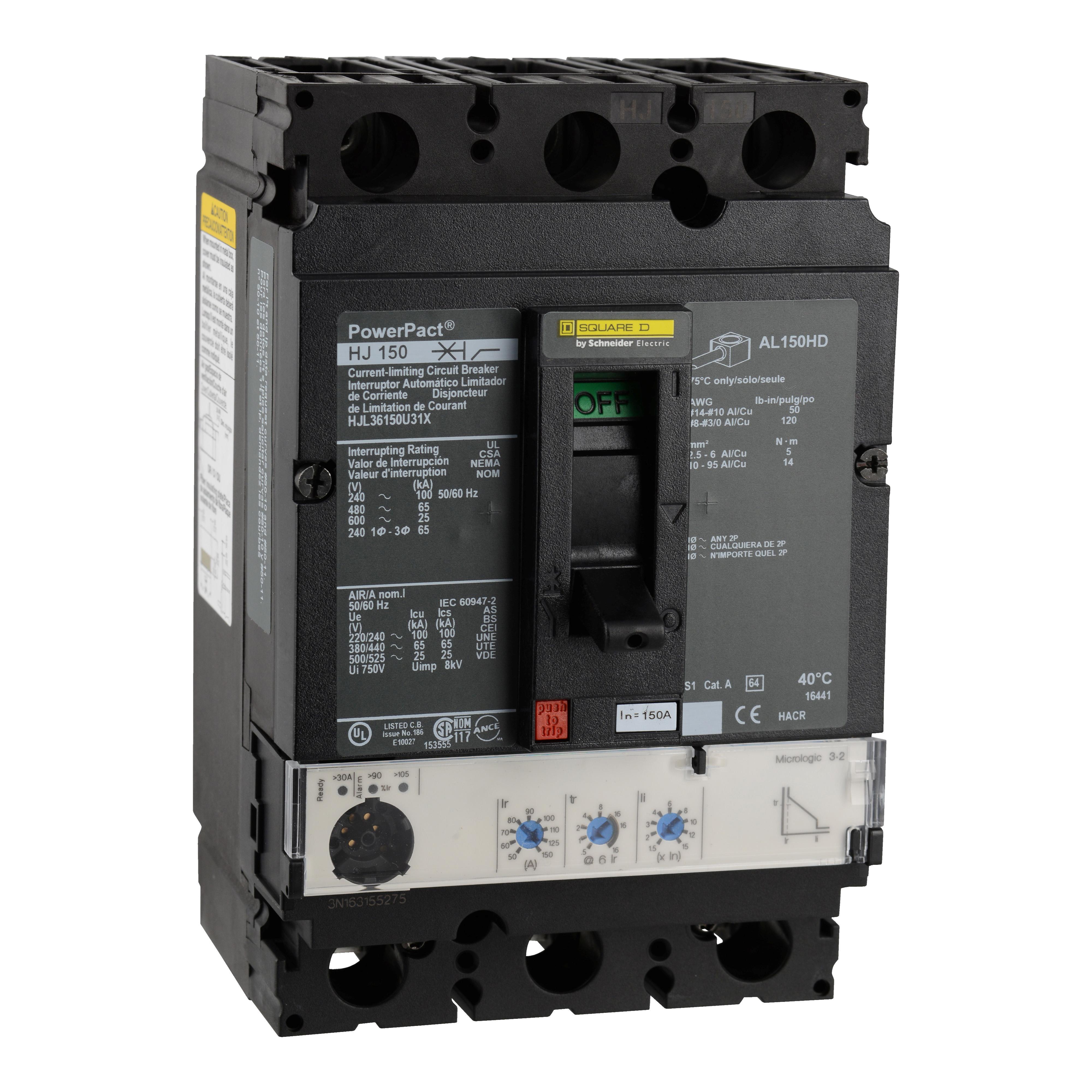

Square D™ PowerPact™ HJL36150U31X Type HJL Molded Case Circuit Breaker, 600 V AC, 150 A, 100 kA at 240 V AC/65 kA at 480 V AC/25 kA at 600 V AC/20 kA at 250 VDC Interrupt, 3 Poles, Electronic Trip

Sku #78590127628

MFG #HJL36150U31X

Attributes

Type:	Type HJL
Amperage Rating:	150 A
Interrupt Rating:	100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC

Voltage Rating:	600 V AC
Frequency Rating:	50/60 Hz
Frame:	H

Standard 80% or 100% rating
Available in Unit mount, I-line or Drawout constructions
A wide range of accessories, auxiliaries, and lug connections available
https://www.youtube.com/embed/1PjFQgO_-Ik

Construction, Commercial Buildings, Oil, Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets

RoHS Compliant|UL 489 File No. E10027|CSA C22.2 No. 5-02 File No. LR40970|CCC/CE Marked|NMX J-266|Federal Specification W-C-375B/GEN|IEC 60947-2|NEMA AB1|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov

Documents

Full Engineering Drawing

Square D™Square D™ PowerPact™ HJL36150U31X Type HJL Molded Case Circuit Breaker, 600 V AC, 150 A, 100 kA at 240 V AC/65 kA at 480 V AC/25 kA at 600 V AC/20 kA at 250 VDC Interrupt, 3 Poles, Electronic Trip

SKU #78590127628

MFG #HJL36150U31X
