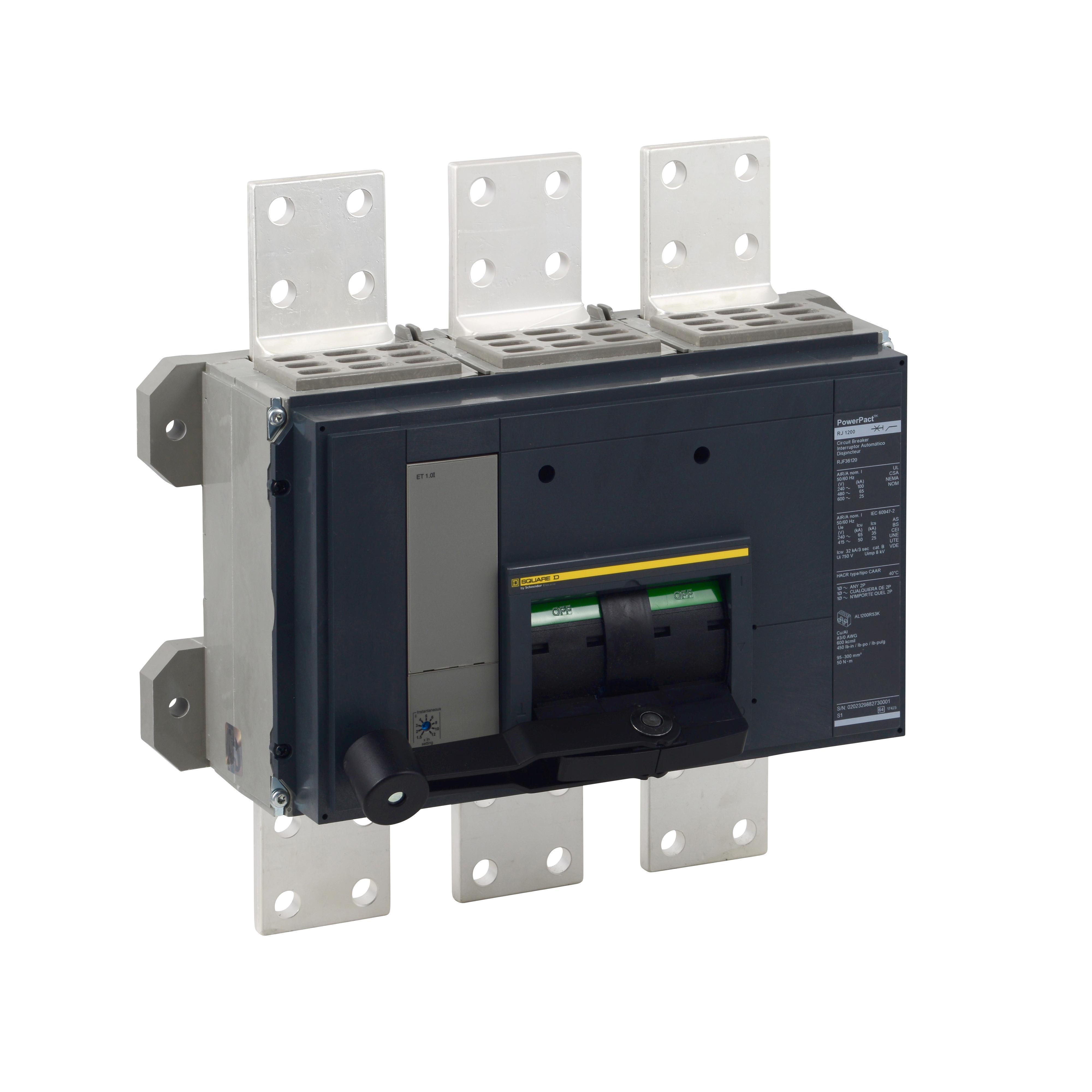

Square D™ PowerPact™ RGF36120 80% Rated Molded Case Circuit Breaker, 600 V AC, 1200 A, 65 kA at 240 V AC/35 kA at 480 V AC/18 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip
Sku #78590123841
MFG #RGF36120
Attributes
| Type: | 80% Rated |
| Amperage Rating: | 1200 A |
| Interrupt Rating: | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC |
| Voltage Rating: | 600 V AC |
| Frequency Rating: | 50/60 Hz |
| Frame: | R |
- Available in 2, 3, 4 pole design
- Common accessories across the range
- Compatible with PowerLogic systems and high amp power circuit breakers
- For providing overload and short circuit protection
- UL 489 File No. E10027|CE Certified|CSA C22.2 File No. 5-02 File No. LR7551|NMX J-266|IEC 60947-2|Federal Specification W-C-375B|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|RoHS Compliant
