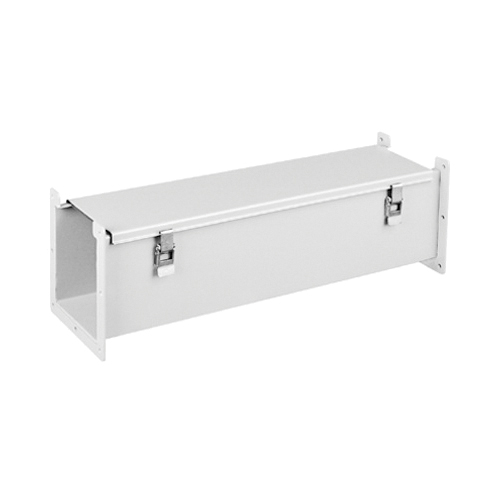

Square D™ Square Duct™ LJB41 Lay-In Oiltight Type LJB Wireway, 1 ft L, Hinged/Gasketed Cover, 14 ga Steel
Sku #78590121641
MFG #LJB41
Attributes
| Type: | Lay-In Oiltight Type LJB |
| Cover Type: | Hinged/Gasketed |
| Material: | 14 ga Steel |
| Length: | 1 ft |
| NEMA Rating: | NEMA 12 |
| Color: | Gray |
- Weighs less and is reusable
- Is easier to install
- Allows conductors to be laid in
- Makes additions to the wiring system easier
- Provides provisions for tap-off
- 14 ga steel covers and body
- 10 ga steel end flange
- Seams continuously welded and ground smooth -no holes or knockout
- Smooth, rounded edges on all sections and fittings to prevent damage to insulation
- Heavy butt hinges and strong latches to ensure complete seal between covers and body
- Quick-release cover latches that permit immediate access to wireway interior
- Oil-resistant gasket and adhesive
- Solid oil-resistant gasket positioned between flanges when sections and fittings are bolted together
- Gasketed quick-release connector that provides complete sealing at each joint
- Straight length
- 4 x 4 in cross section
- Distribution of Power in Industrial Plant, Ganging Equipment Such as Motor Controllers, Safety Switches and Metering Devices, Incoming Cable Runs and Feeder Circuits from Switchboards to Power and Lighting Panels and Vertical Runs of Cable in Elevator Shaft
- ANSI 49|CSA File# LL42184|ECCN EAR99|JIC EGP-1-1967 and EMP-1-1967|IEC 60529|IP54|NEMA/EEMAC|UL File# E27524 and 870
