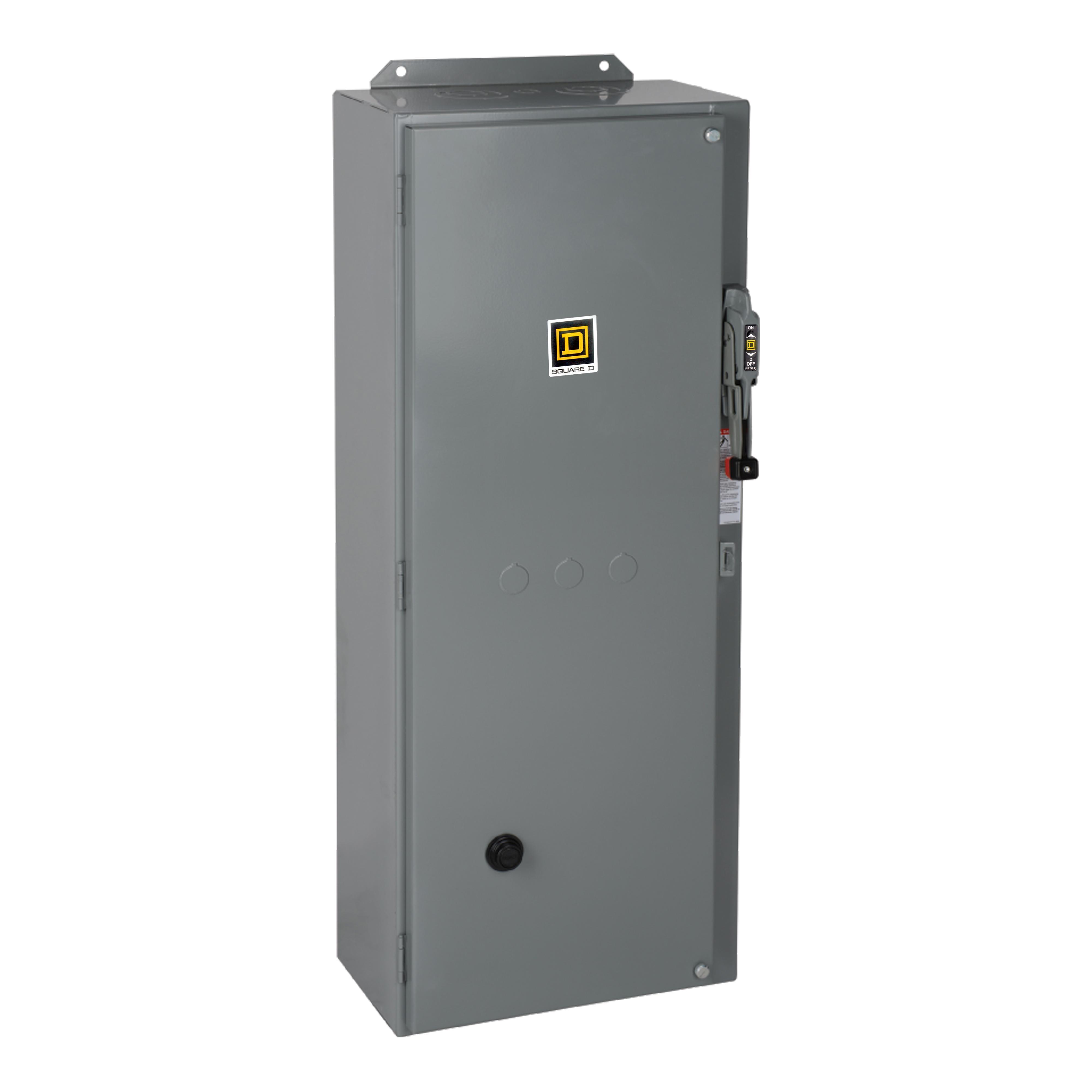

Square D™ 8539SEG42V02S Type S Combination Magnetic Starter, 110 VAC at 50 Hz, 120 VAC at 60 Hz V Coil, 3 Poles, NEMA 1 Enclosure
Sku #78590118665
MFG #8539SEG42V02S
Attributes
| Type: | Type S |
| Voltage Rating: | 600 V AC |
| Frequency Rating: | 50/60 Hz |
| Series: | 8539 |
| Amperage Rating: | 90 A |
| Wattage: | 18.5 kW at 208 V AC/22 kW at 240/480 V AC/37 kW at 600 V AC |
- Longer lasting, energy efficient 30 mm LED pilot lights
- Specially designed, pliable "foam-in-place" cabinet seals that protect from harmful outside elements providing a secure seal each time it's closed
- Flexible fit accommodate standard 9070TF control power transformers allowing for a wide range of fits and easier modifications
- Easy access streamline installation, wiring, maintenance and field modifications with convenient door mounted pilot devices
- Expert design operate smarter with the redesigned operating mechanism and disconnect switch that allow you to reset the overload without special tools
- Also the sturdy construction of the non-removable door helps ensure a safer, more secure starter
- Seismic tested rely on seismic-rated NEMA combination starters for critical applications like hospitals, water treatment facilities, data centers, schools, shopping centers and convention centers
- Serviceable by replacing contacts and coils rather than replacing the entire product, simply service the part that is worn out
- Customizable with hundreds of combinations
- NEMA 3 enclosure rating
- NEMA type 1 general purpose enclosure
- Electronic motor circuit protection
- Starting and Stopping of AC Squirrel Cage Motors, Indoor, General Purpose, Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation Applications
- External Reset and Separate Control Circuit
- CSA LR584 Class 3211-04|ECCN EAR99|UL E152395 NKJH7|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
- 18 Months
