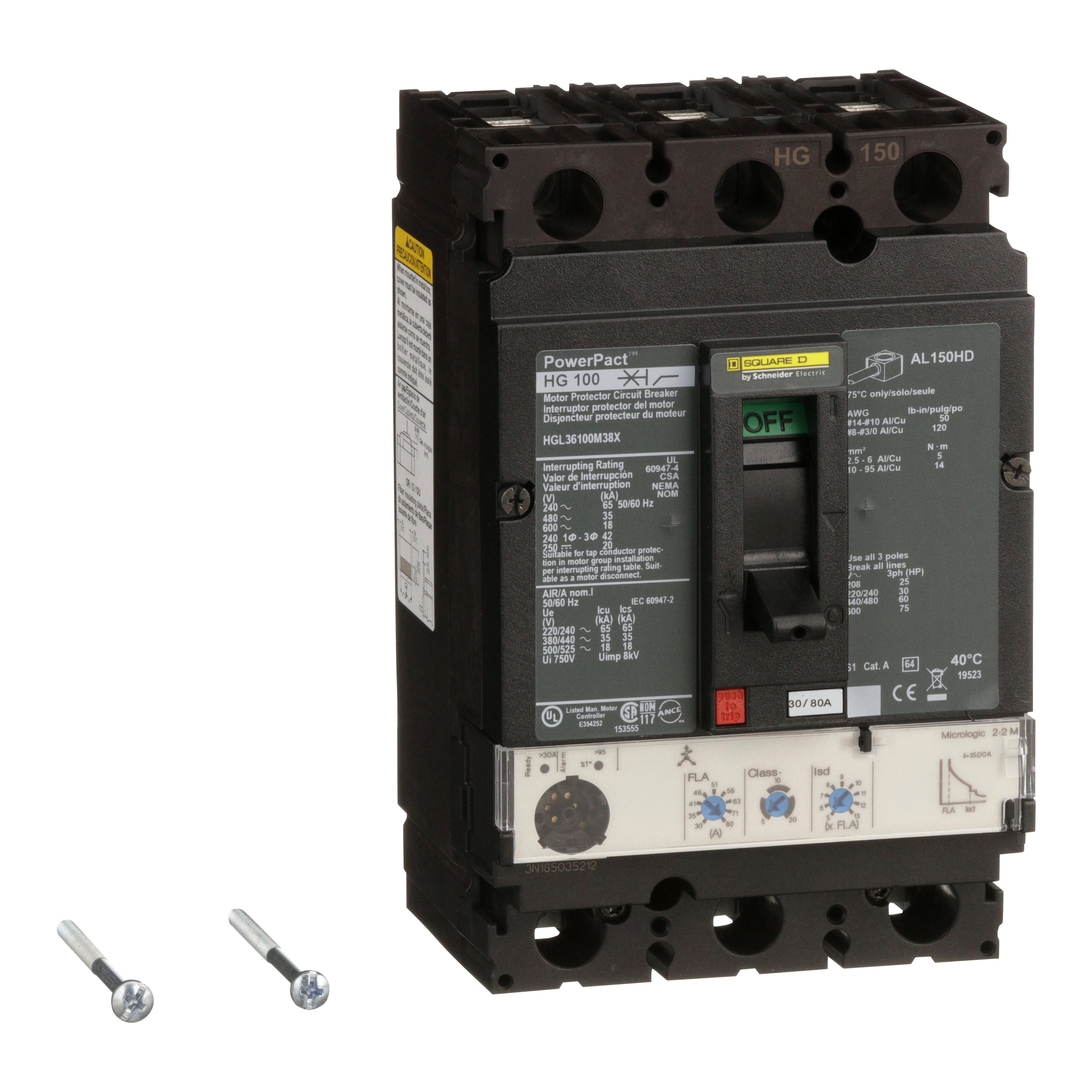

Square D™ HGL36100M38X Motor Circuit Protectors

Documents

Square D™ PowerPact™ HGL36100M38X Motor Circuit Protector, 600 V AC, 100 A, 65 kA at 240 V AC/35 kA at 480 V AC/18 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip

Sku #78590117512

MFG #HGL36100M38X

Attributes

Voltage Rating:	600 V AC
Frequency Rating:	50/60 Hz
Frame:	H

Amperage Rating:	100 A
Interrupt Rating:	65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC
Trip Type:	Electronic

UL Listed|CE, CSA Certified|IEC Rated|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|RoHS Compliant

Standard 80% or 100% rating
Available in Unit mount, I-line or Drawout constructions
A wide range of accessories, auxiliaries, and lug connections available
https://www.youtube.com/embed/ja3DCvAs9M4

Documents

Full Engineering Drawing

Square D™Square D™ PowerPact™ HGL36100M38X Motor Circuit Protector, 600 V AC, 100 A, 65 kA at 240 V AC/35 kA at 480 V AC/18 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip

SKU #78590117512

MFG #HGL36100M38X
