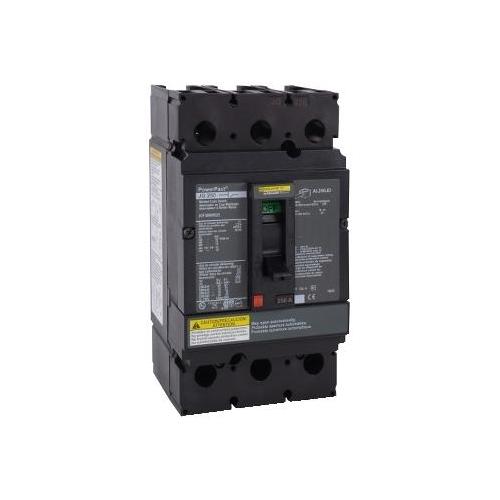

Schneider Electric PowerPact™ Micrologic™ JGF36000S25 Automatic Molded Case Switch, 600 VAC, 250 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250/500 VDC Interrupt, 3 Poles, Thermal Magnetic Trip
Sku #78590116008
MFG #JGF36000S25
Attributes
| Type: | Automatic |
| Amperage Rating: | 250 A |
| Interrupt Rating: | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250/500 VDC |
| Voltage Rating: | 600 V AC |
| Frequency Rating: | 50/60 Hz |
| Frame: | J Frame |
- To open and close a circuit under normal operating conditions
- Can make and break its rated current
- Factory set nonadjustable trip point to protect the molded case switch
- A wide range of accessories, auxiliaries, and lug connections available
- https://www.youtube.com/watch?v=REjAWDGbYLs
- Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets Applications
- CSA C22.2 No. 5 File No. LR32390|CE Certified|Federal Specification W-C-375B/GEN|IEC 60947-3|UL 489 File No. E87159|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|RoHS Compliant
