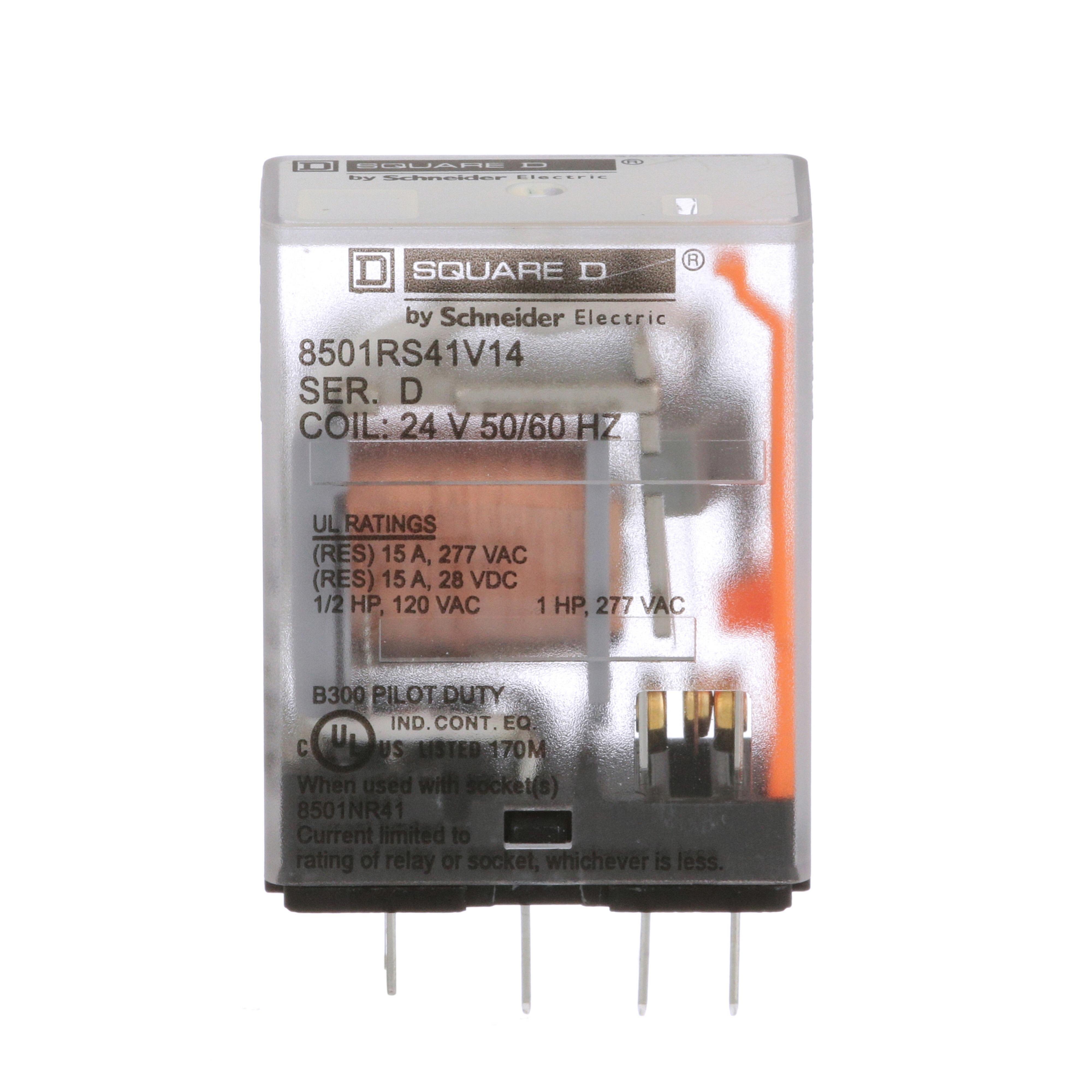

Square D™ 8501RS41V14 Type R Standard Miniature Plug-In Relay, 10 to 15 A, 5 Pin, 1 Form C SPDT Contact, 300 V AC, 30 V DC V Coil
Sku #78590113702
MFG #8501RS41V14
Attributes
| Type: | Type R Standard Miniature |
| Amperage Rating: | 10 to 15 A |
| Frequency Rating: | 50/60 Hz |
| Series: | 8501R |
| Power Rating: | 1/3 hp, 1/2 hp, 1 hp |
| Coil Voltage: | 300 V AC, 30 V DC |
- Different contact compositions allow these relays to be used in a variety of application
- Fine silver (gold flashed) and bifurcated crossbar (gold overlay silver) are suitable for high contact reliability and low level switching requirements
- Silver cadmium-oxide is best suited for inductive load
- 20 ms pickup and 20 ms drop-out operating time
- Spade shape pin
- 1/3 hp at 120 VAC, 1/2 hp at 240 VAC
- No indicator, without test button
- https://www.youtube.com/embed/Hq-lwURWDPs
- CE Certified|CSA File No. 211268 Class 3211 07|cULus File No. E197072 CCN NRNT8|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov|RoHS Compliant|UL File No. E78351 CCN NLDX File No. E197072 CCN NRNT2|UL Listed|UL Recognized
- For Logic elements and power switching output devices applications
