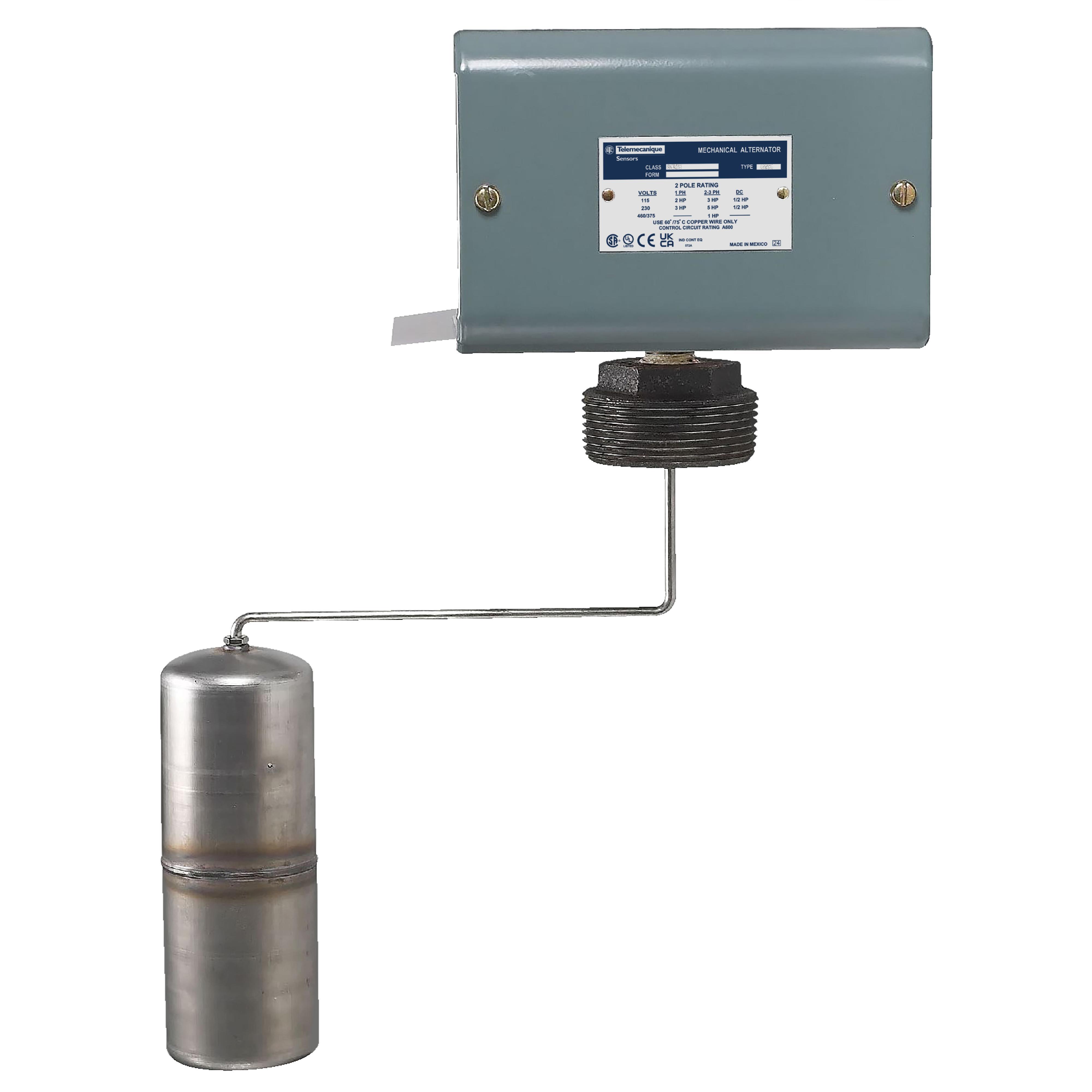

Square D™ 9038CG33Z20 Adjustable Closed Tank Level Control DPST Mechanical Alternator Float Switch, 575 V AC Input, -22 to 220 deg F
Sku #78590111624
MFG #9038CG33Z20
Attributes
| Type: | Adjustable Closed Tank Level Control DPST Mechanical Alternator |
| Input: | 575 V AC |
| Material: | Cold Rolled Steel |
| Series: | 9038C |
| Temperature Rating: | -22 to 220 deg F |
| Finish: | Painted |
- 4NC DPST contacts
- 8 knockouts for 1/2 in or 3/4 in conduit UL 508 cable entry
- Contacts close on liquid rise contact operation
- 4 to 7-3/4 in adjustable float movement
- Right float position
- 90 deg float rod angle
- 20 A cartridge fuse gG short circuit protection
- 100 cycles at 60 cycles/min electrical durability
- 300 cycles mechanical durability
- 8 terminals, 60 cycles/min operating rate
- Yellow brass, viton, 304/316 stainless steel, cast iron material in contacts with fluid
- 1 hp power rating
- Screw-in bushing mounting
- NEMA 1 enclosure rating
- 4 to 7-3/4 in sensing range
- Screw clamp terminal connection type
- For 1.5 kW at 2 hp, 115 VAC 1-phase, 2.2 kW at 3 hp, 115 VAC 3-phase, 2.2 kW at 3 hp, 230 VAC 1-phase, 3.7 kW at 5 hp, 230 VAC 3-phase, 0.75 kW at 1 hp, 460 VAC 3-phase, 0.75 kW at 1 hp, 475 VAC 3-phase, 0.18 kW at 0.25 hp, 32 VDC, 0.37 kW at 0.5 hp, 115 VDC, 0.37 kW at 0.5 hp, 230 VDC closed tank with bushing, closed tank, mechanically alternating the operation of two pumps or motors, power circuit, mechanically alternating the operation of two pumps or motor
- 18 months
- RoHS Compliant|UL 50/508 File No. E12158|CSA File No. LR25490|CE Marked|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov
- Float, Rod and Float Switch
