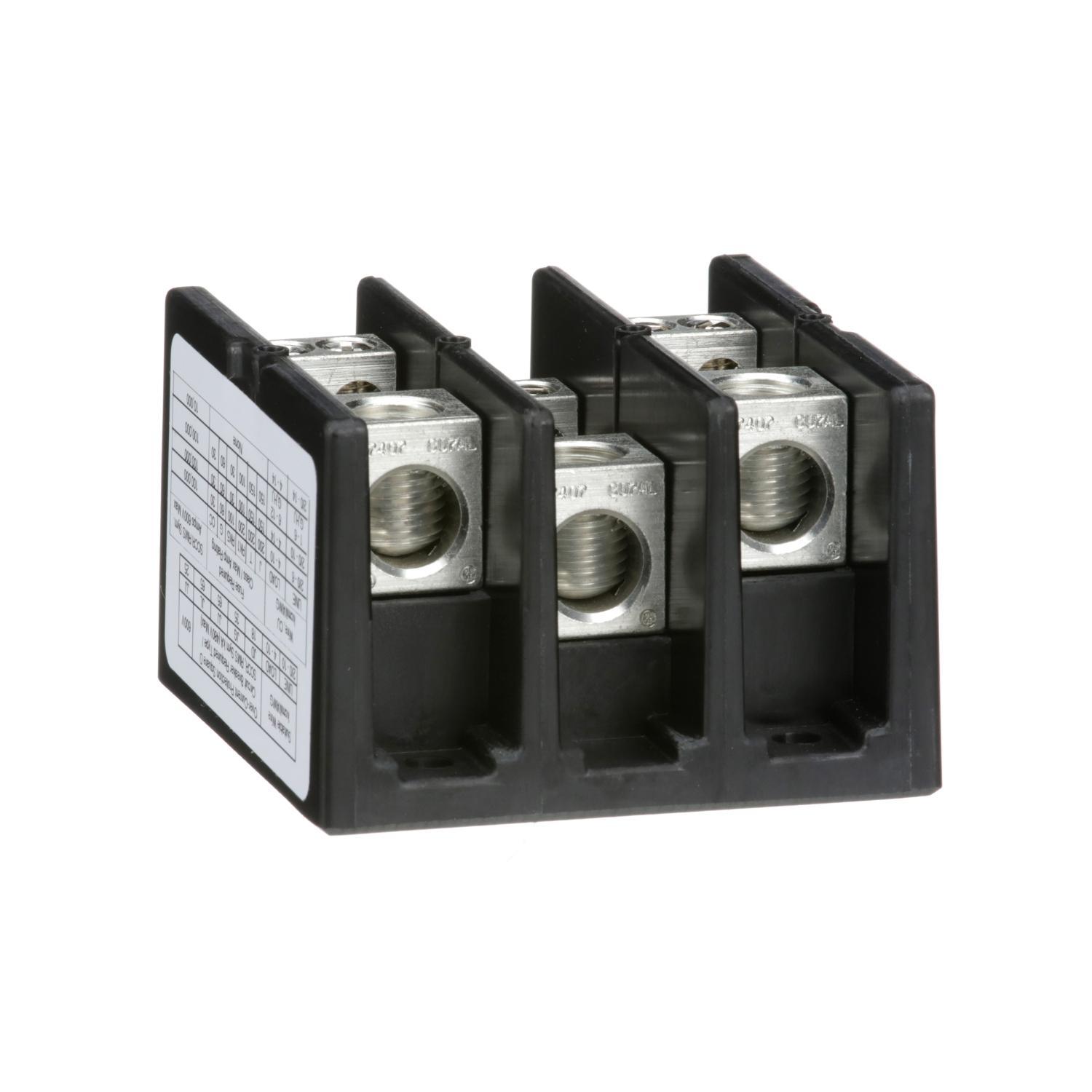

Square D™ TeSys® 9080LBA362104 Standard Multi-Pole Power Distribution Block, 600 V AC/DC, 135/175 A, 3 Poles, 14 to 2/0 AWG/14 to 4 AWG Wire, Phenolic
Sku #78590109745
MFG #9080LBA362104
Attributes
| Type: | Standard |
| Voltage Rating: | 600 V AC/DC |
| Number of Poles: | 3 |
| Series: | 9080LB |
| Amperage Rating: | 135/175 A |
| Primary Connections/Pole: | 1 |
- This block is three pole and designed to NEMA standards
- One lug opening on main side and four on branch side
- The housing is made of general purpose phenolic
- For 9080LB23 power distribution block covers and general purpose applications
- RoHS Compliant|UL File No. E60616|UL 94 V-0 Flammability Rating|CSA File No. LR70361|CE Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
