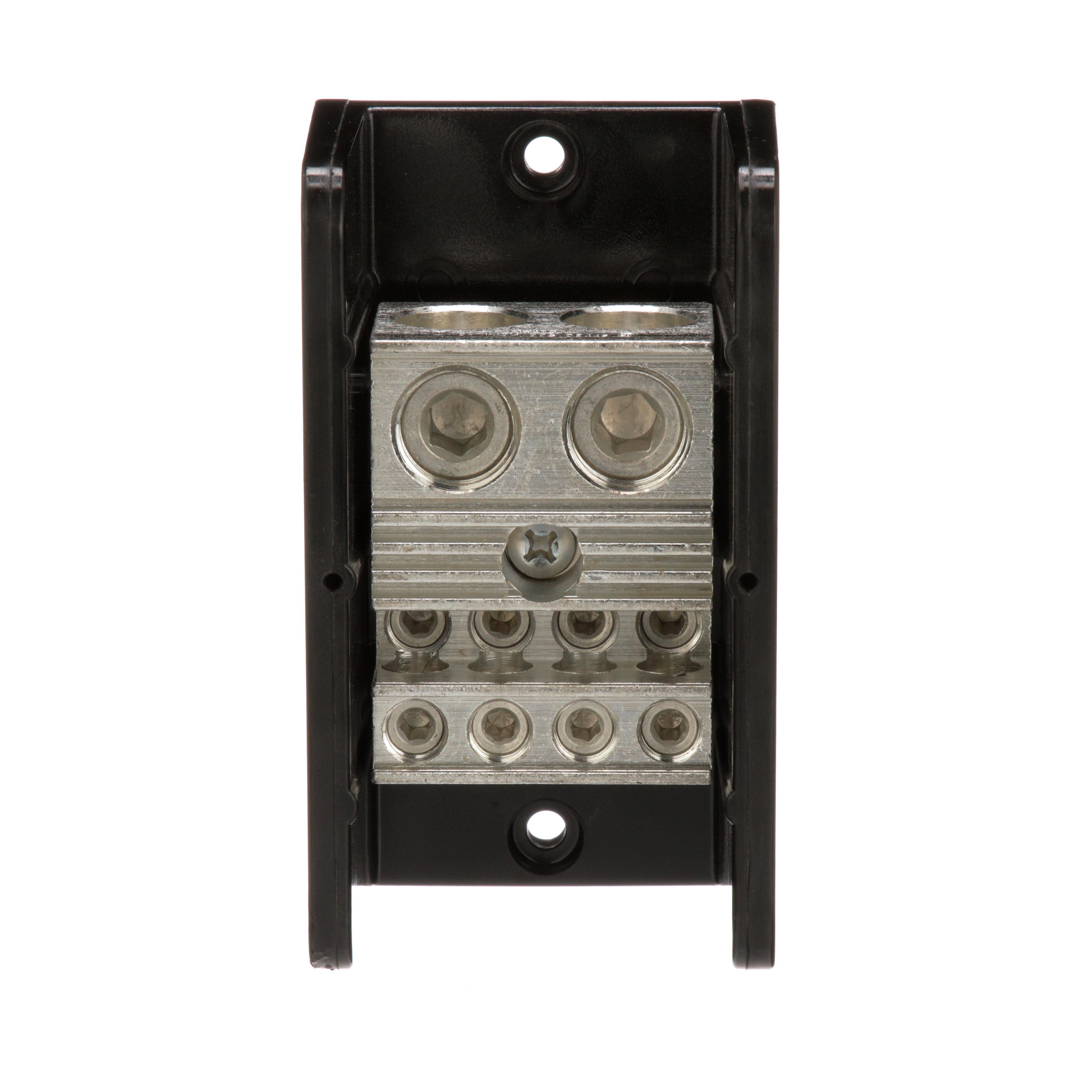

Square D™ 9080LBA165208 Standard Power Distribution Block, 600 VAC/VDC, 760/620 A, 1 Pole, 14 to 2/0 AWG, 4 AWG to 500 kcmil Wire, Phenolic
Sku #78590109740
MFG #9080LBA165208
Attributes
| Type: | Standard |
| Voltage Rating: | 600 V AC/DC |
| Number of Poles: | 1 |
| Series: | 9080LB |
| Amperage Rating: | 760/620 A |
| Primary Connections/Pole: | 2 |
- For 9080LB, 9080LB51 power distribution block covers and general purpose applications
- Two lug opening on main side and eight on branch side
- The housing is made of general purpose phenolic
- ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE Certified|CSA File No. 70361 Class 6228 01|UL File No. E60616|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
