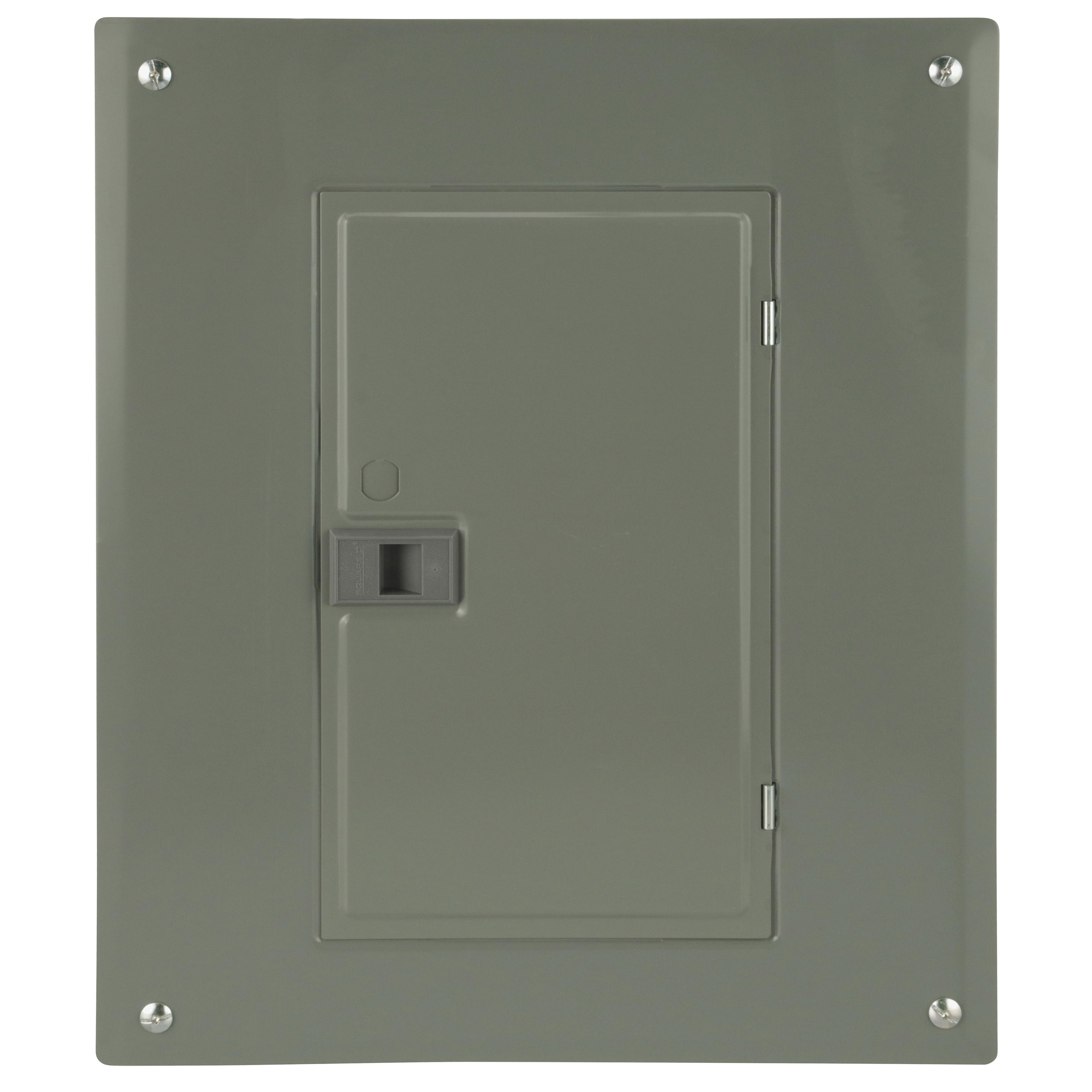

Square D™ QO™ QO116M100PC 1-Phase Convertible Main Neutral Load Center, 120/240 VAC, 100 A, 1 Pole, 22 kA Interrupt
Sku #78590108588
MFG #QO116M100PC
Attributes
| Type: | 1-Phase |
| Amperage Rating: | 100 A |
| Interrupt Rating: | 22 kA |
| Voltage Rating: | 120/240 V AC |
| Number of Poles: | 1 |
| Number of Circuits: | 16 |
- 3/4 in W circuit breaker
- Separate flush or surface mount covers
- Full complement of accessories
- Backed out neutral screws save labor and installation time
- Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
- Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
- Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
- Standard 22000/10000 A series short circuit current rating on main breaker load centers provides increased application capability
- QO™ 3 ph main circuit breaker panels can be field upgraded to provide 100000 A short circuit current ratings
- Single, captive interior mounting screw can't be lost
- Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
- Split branch neutral with up to 50% more terminations than UL requirement - simplifies wiring and reduces clutter
- Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
- Combination slot/square drive neutral, ground and cover screw accommodate both standard flat blade screwdrivers and square head drivers
- Three ground bar mounting locations (left, right and end) make it easier to wire
- Residential, Remodels/Upgrades, Commercial, Agricultural and Indoor Applications
- Combination Cover
- UL Listed
- Lifetime
