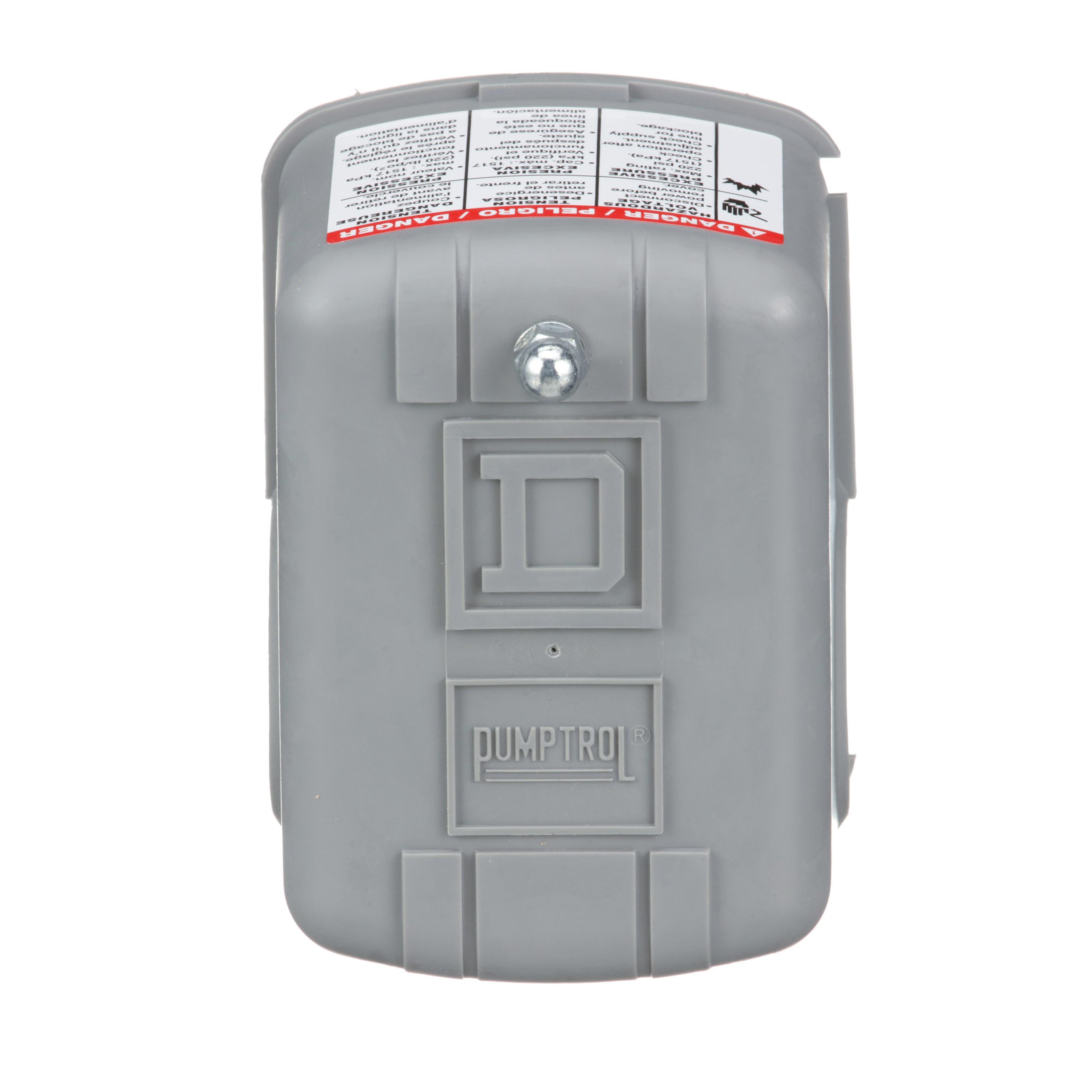

Telemecanique Pumptrol® 9013FSG2J21 Electro-Mechanical Pressure Switch, 10 to 45 psi Pressure, 15 to 30 psi Differential, 2NC DPST-DB Contact, Screw Clamp Connection
Sku #78590107721
MFG #9013FSG2J21
Attributes
| Type: | Electro-Mechanical |
| Differential: | 15 to 30 psi |
| Contact Configuration: | 2NC DPST-DB |
| Pressure Rating: | 10 to 45 psi |
| Maximum Pressure: | 220 psi |
| Operating Cycles: | 300000 Cycles |
- The type FSG standard water pump switch is suitable for all types of pumps, including jets, submersible and reciprocating
- Diaphragm actuated
- 2NC, snap action, DPST-DB, form YY contact
- Fresh water (-22 to 257 deg F)
- 1/4 in NPSF internal conforming to UL 508 fluid connection
- Regulation between 2 thresholds, adjustable differential scale
- 4 terminal blocks
- Screw clamp terminal, 10 AWG clamping capacity electrical connection
- Nitrile (Buna-N) diaphragm
- 300000 cycles mechanical durability, 100000 cycles at 10 cycles/min electrical durability
- Zinc plated steel or equivalent flange
- General purpose (indoor) enclosure
- Bracket mounting
- (2) 0.88 in cable entries with 0.84 in across flats
- Noryl thermoplastic resin
- General purpose (indoor) environmental conditions
- Used to control electrically driven water pumps applications
- CE Certified|CSA File No. LR26817|NSF Annex G|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL 508|UL File No. E12158 CCN NKPZ
