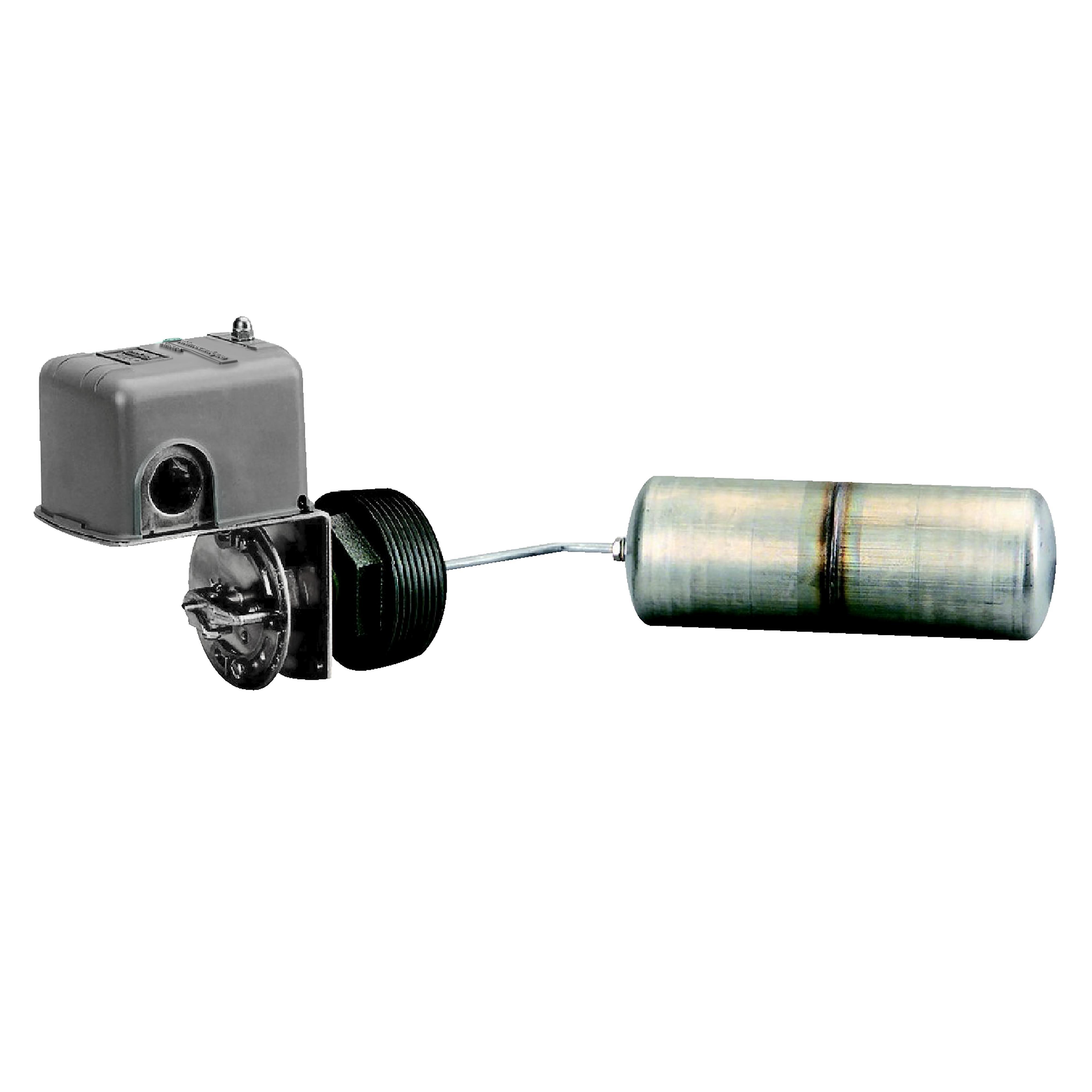

Square D™ 9037HG37 Level Control Float Switch, 575 V AC Input, 2 NC Snap Action Output, -30 to 104 deg C
Sku #78590107554
MFG #9037HG37
Attributes
| Type: | Level Control |
| Output: | 2 NC Snap Action |
| Material: | Polypropylene |
| Input: | 575 V AC |
| Temperature Rating: | -30 to 104 deg C |
| Country of Origin: | MX |
- 2 NC DPST-DB contacts
- 3 knockouts for 1/2 in conduit UL 508 cable entry number
- Contacts close on liquid rise contacts operation
- 2 to 7 in adjustable float movement
- Right float position
- 90 deg float rod angle
- Polypropylene or equivalent enclosure
- 100 cycles at 60 cycles/min electrical durability
- 300 cycles mechanical durability
- 4 terminals, 60 cycles/min operating rate
- -22 to 220 deg F storage temperature
- Yellow brass, nitrile (Buna-N) or equivalent rubber, 304/316 stainless steel, cast iron material in contacts with fluid
- https://www.youtube.com/watch?v=lB52Ebj_53k
- For liquid level control
- UL 50|508|File No. E12158|CSA File No. LR25490|CE Certified
