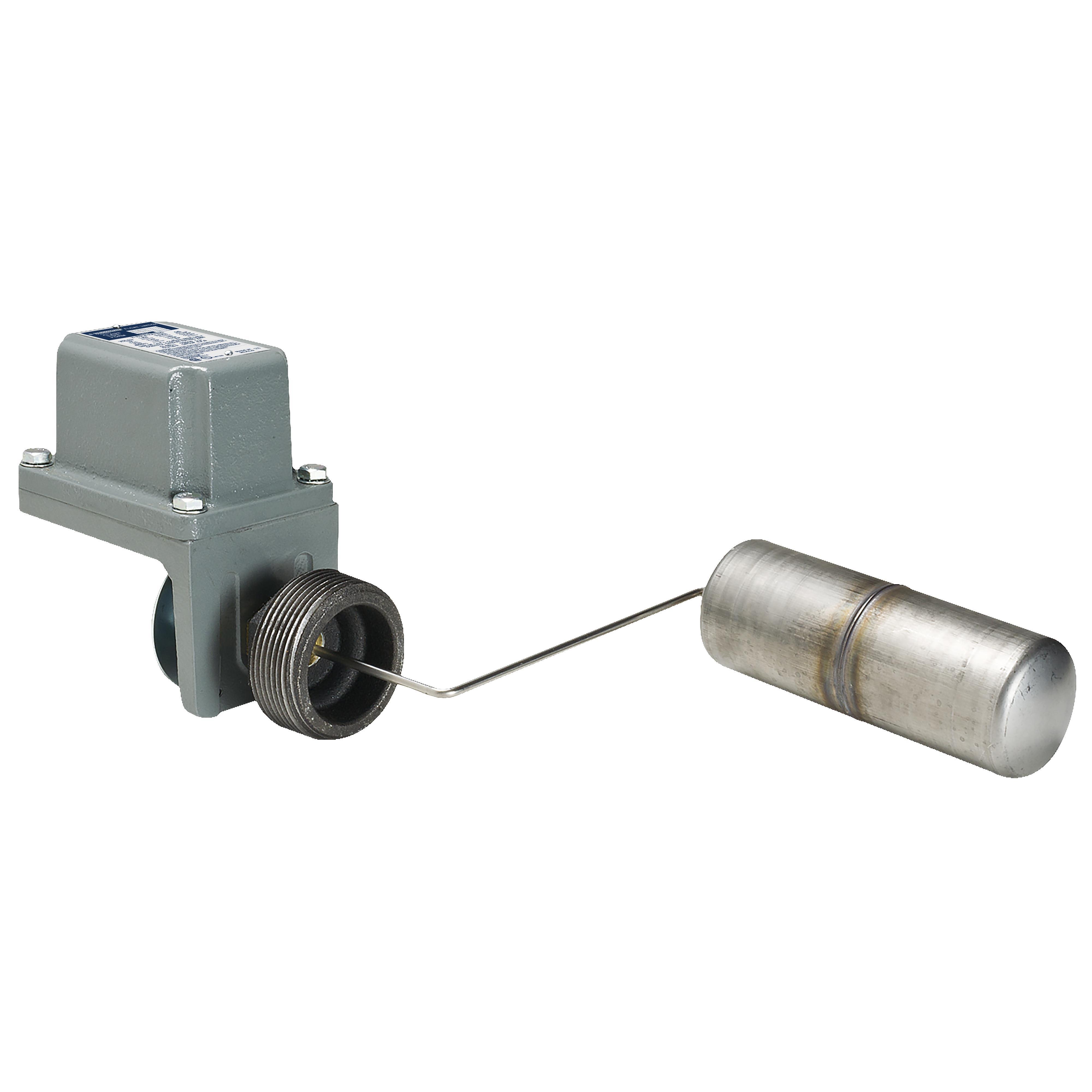

Square D™ 9037HW30 2-Pole Adjustable Closed Tank Level Control DPST Float Switch, 575 V AC Input, -22 to 220 deg F
Sku #78590107539
MFG #9037HW30
Attributes
| Type: | 2-Pole Adjustable Closed Tank Level Control DPST |
| Input: | 575 V AC |
| Material: | Cast Aluminum |
| Series: | 9037H |
| Temperature Rating: | -22 to 220 deg F |
| Country of Origin: | MX |
- 2NC DPST contacts
- 2-conduit entries for 3/4-14 UL 508 cable entry number
- Contacts close on liquid rise contact operation
- 4-1/4 to 8-1/4 in adjustable float movement
- Left float position
- 90 deg float rod angle
- 100 cycles at 60 cycles/min electrical durability
- 300 cycles mechanical durability
- 4-terminal, 60 cycles/min operating rate
- Yellow brass, nitrile (Buna-N) or equivalent rubber, 304/316 stainless steel, cast iron material in contacts with fluid
- 1 hp power rating
- Screw-in bushing mounting
- NEMA 4 enclosure
- 4-1/4 to 8-1/4 in sensing range
- Screw clamp terminal connection type
- 20 A cartridge fuse gG short circuit protection
- For 1.5 kW at 2 hp, 115 VAC 1-phase, 2.2 kW at 3 hp, 115 VAC 3-phase, 2.2 kW at 3 hp, 230 VAC 1-phase, 3.7 kW at 5 hp, 230 VAC 3-phase, 0.75 kW at 1 hp, 460 VAC 3-phase, 0.75 kW at 1 hp, 475 VAC 3-phase, 0.18 kW at 0.25 hp, 32 VDC, 0.37 kW at 0.5 hp, 115 VDC, 0.37 kW at 0.5 hp, 230 VDC closed tank, closed tank liquid level control, power circuit and liquid level control applications
- UL 50/508 File No. E12158|CSA File No. LR25490|CE Marked|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov
