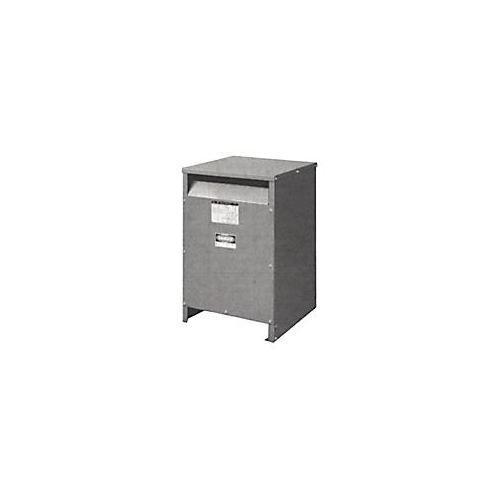

Square D™ 7S67F Dry Sealed Low Voltage Transformer, 190/200/208/220 x 380/400/416/440 V AC Primary, 110/220 VAC Secondary, 7.5 kVA Power Rating, 50/60 Hz, 1 Phase
Sku #78590106949
MFG #7S67F
Attributes
| Type: | Dry Sealed Low Voltage |
| Secondary Voltage: | 110/220 V AC |
| Frequency Rating: | 50/60 Hz |
| Primary Voltage: | 190/200/208/220 x 380/400/416/440 V AC |
| Power Rating: | 7.5 kVA |
| Phase: | 1 |
- Painted finish
- Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry
- Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly
- Can be field connected for 3-phase applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant
- Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer
- General purpose - intended for export - designed to accommodate voltage systems worldwide, these units can be used outdoors without accessories
- Resin filled transformers
- For intended for export, designed to accommodate voltage systems worldwide, OEM commercial and industrial markets
- ECCN EAR99|CE Certified|CSA Certified|cULus Listed|EN60-742 TUV (File no. E9571881.01)|REACH Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
