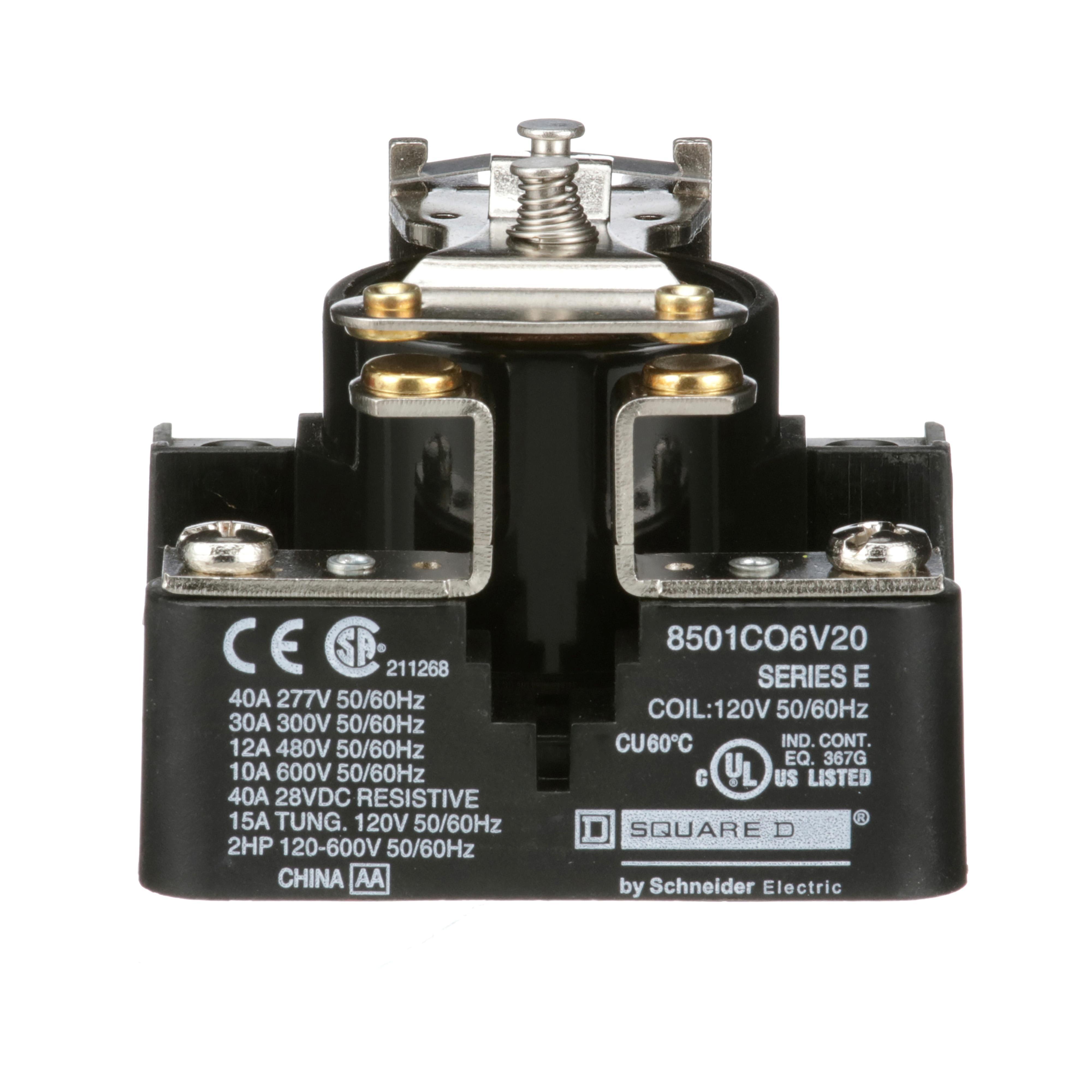

Square D™ 8501CO6V20 1-Phase General Purpose Power Relay, 30 A, 1NO 1 Form A SPST Contact, 120 V AC V Coil
Sku #78590105203
MFG #8501CO6V20
Attributes
| Type: | 1-Phase General Purpose |
| Amperage Rating: | 30 A |
| Frequency Rating: | 50/60 Hz |
| Series: | 8501C |
| Power Rating: | 2 hp |
| Coil Voltage: | 120 V AC |
- Used in robust conditions
- Durable, open frame construction
- With optional blowout magnet for DC switching
- 2HP motor load rating
- Wide range of operating temperature from -22F to 122F
- Suited For Controlling Small Single Phase Motors and Other Light Loads Such As Electric Heaters, Pilot Lights Or Audible Signals Applications
- CE Certified|CSA Certified (File 218139 Class 3211 04)|IEC 60947-4-1|NLDX7 Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|RoHS Compliant|UL File No. E78351 CCN NLDX
