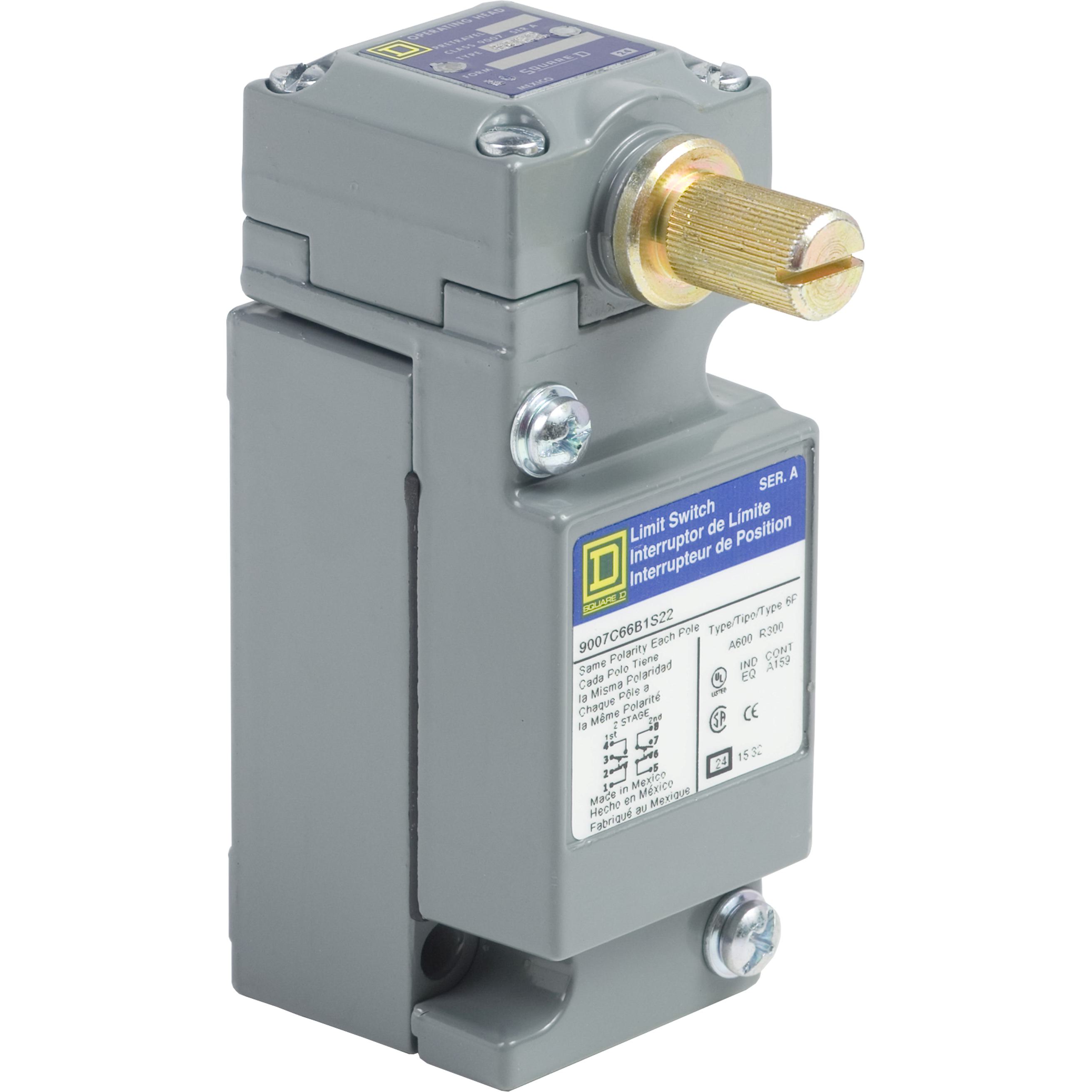

Square D™ 9007C66B1S22 Type C Heavy Duty Limit Switch, 600 V AC, 10 A, Spring Return Lever Arm Actuator, 2NO-2NC SPDT-DB Contact
Sku #78590104616
MFG #9007C66B1S22
Attributes
| Type: | Type C Heavy Duty |
| Voltage Rating: | 600 V AC |
| Contact Configuration: | 2NO-2NC SPDT-DB |
| Series: | 9007 |
| Amperage Rating: | 10 A |
| Action: | Rotary/Snap |
- C + options limit switch
- 90 deg maximum displacement angle
- 4 deg tripping angle
- Silver alloy (AgNi) contact material
- CCW switch actuation
- Turret head rotary lever
- RoHS Compliant|IEC 60204-1|CENELEC EN 50041|EN 609475-1|CSA C22.2 No. 14|UL 508|EN 60204-1|IEC 609475-1|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov
