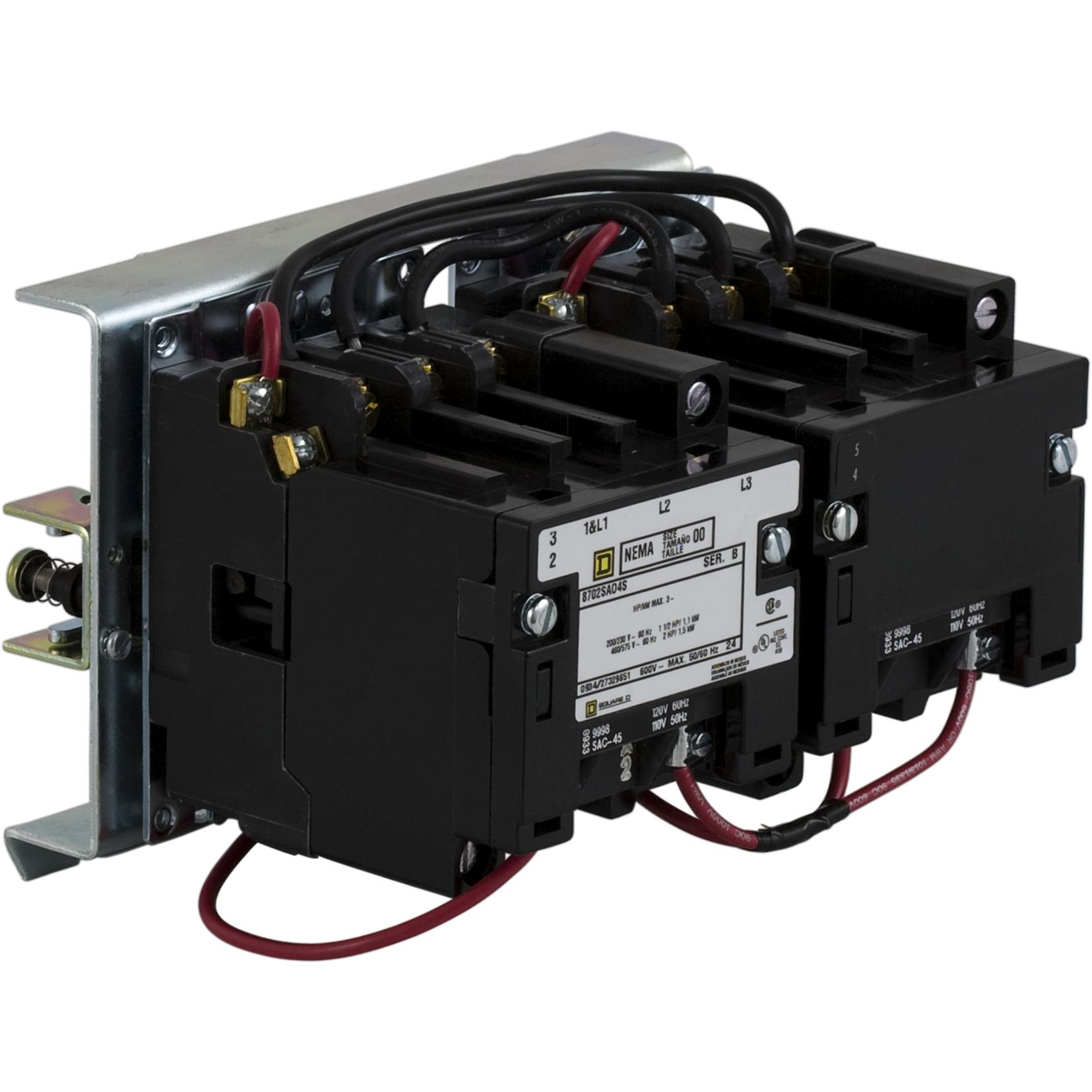

Square D™ 8702SDO1V02S 3-Phase Type S Reversing Contactor, 110/120 V AC V Coil, 3 Poles
Sku #78590102174
MFG #8702SDO1V02S
Attributes
| Type: | 3-Phase Type S Reversing |
| Coil Voltage: | 110/120 V AC |
| Number of Poles: | 3 |
| Series: | 8702 |
| Coil Power Rating: | 10 hp at 200 VAC, 15 hp at 230 VAC, 25 hp at 460/575 VAC |
| Frequency Rating: | 50/60 Hz |
- Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation Applications
- A normally open holding circuit contact for 3-wire control is provided as standard
- For flexibility field installable or factory modified accessories include auxiliary contacts, power poles and cover mounted control stations
- Bell crank design promotes superior electrical and mechanical life
- NEMA sizes 00 to 5 are supplied with coils that are designed to operate satisfactorily on line voltages of 85% to 110% of rated voltage
- NEMA sizes 5, 6 and 7 contactors are supplied with a DC coil operated by a solid state rectifier circuit that is powered by an AC source
- Sizes 00 to 2 contactors use a class 9999 SX11 auxiliary contact as the holding circuit contact
- Sizes 3 to 7 contactors use a class 9999 SX6 auxiliary contact as the holding circuit contact
- 600 VAC system voltage
- Screw clamp terminal connection type
- Without indicator
- 10 hp at 200 VAC, 15 hp at 230 VAC, 25 hp at 460 VAC, 25 hp at 575 VAC, separate control circuit
- CSA File LR60905 Class 3211-04|ECCN EAR99|UL E78351 CCN NLDX|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
