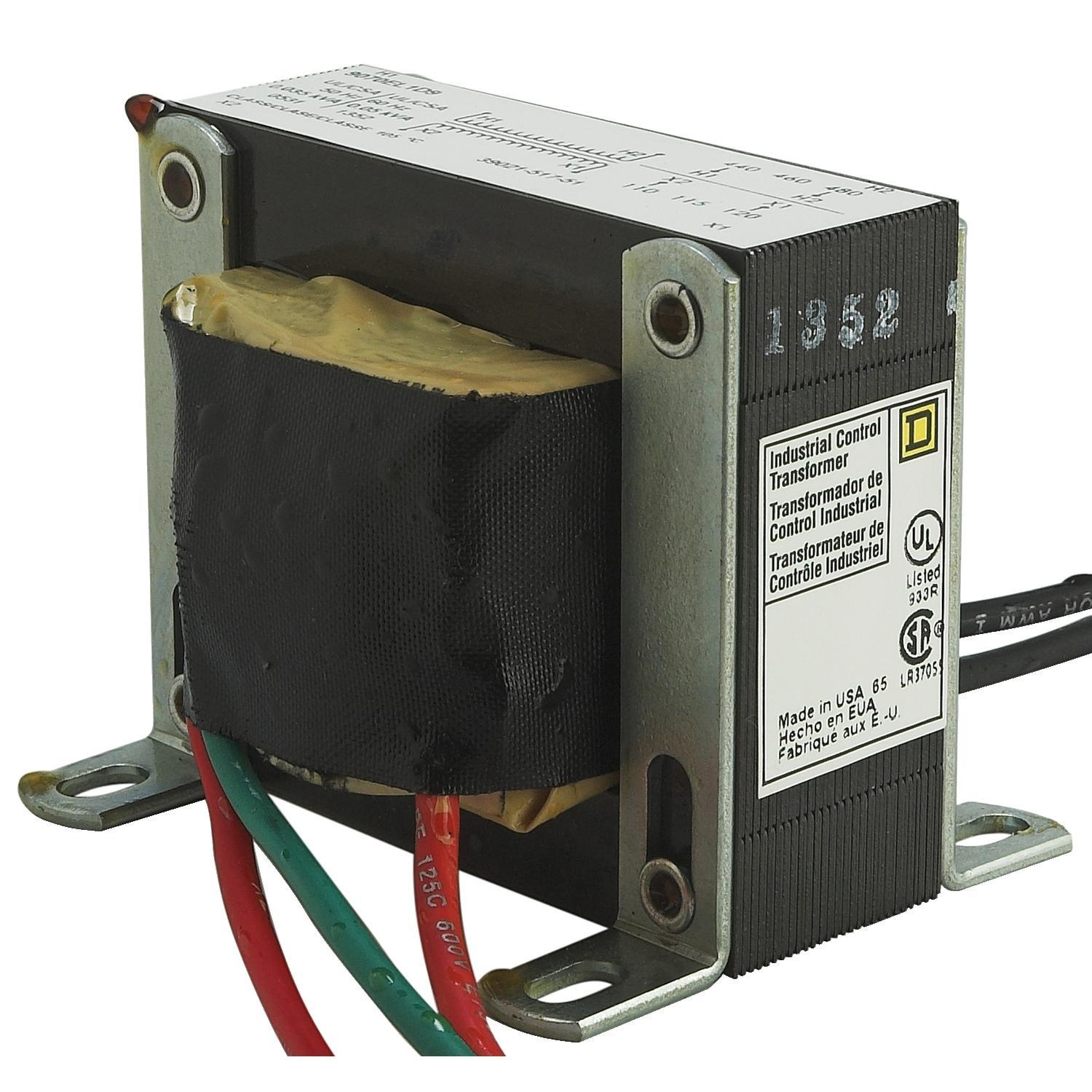

Square D™ 9070EL1D9 Control Transformers

Documents

Square D™ OsiSense® 9070EL1D9 Type EL Industrial Wire Wound Control Transformer With 24 in Lead, 440/460/480 V AC Primary, 110/115/120 VAC Secondary, 50 VA Power Rating, 50/60 Hz, 1 Phase

Sku #78590102021

MFG #9070EL1D9

Attributes

Type:	Type EL Industrial Wire Wound
Secondary Voltage:	110/115/120 V AC
Frequency Rating:	50/60 Hz

Primary Voltage:	440/460/480 V AC
Power Rating:	50 VA
Phase:	1

Industrial Applications

Used with motor control center buckets
No screw terminals
Long wire leads
https://www.youtube.com/embed/c35mQsPEA58

Primary and Secondary Fuse

18 Months

ECCN: EAR99|CE Certified|CSA File No. LR37055 Guide 184-N-90|UL File No. E61239|PROP65: This product can expose you to chemicals including: Phenyl Glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Documents

Catalog

Instruction/Installation Manual

RoHS

Specification Sheet

Square D™Square D™ OsiSense® 9070EL1D9 Type EL Industrial Wire Wound Control Transformer With 24 in Lead, 440/460/480 V AC Primary, 110/115/120 VAC Secondary, 50 VA Power Rating, 50/60 Hz, 1 Phase

SKU #78590102021

MFG #9070EL1D9
