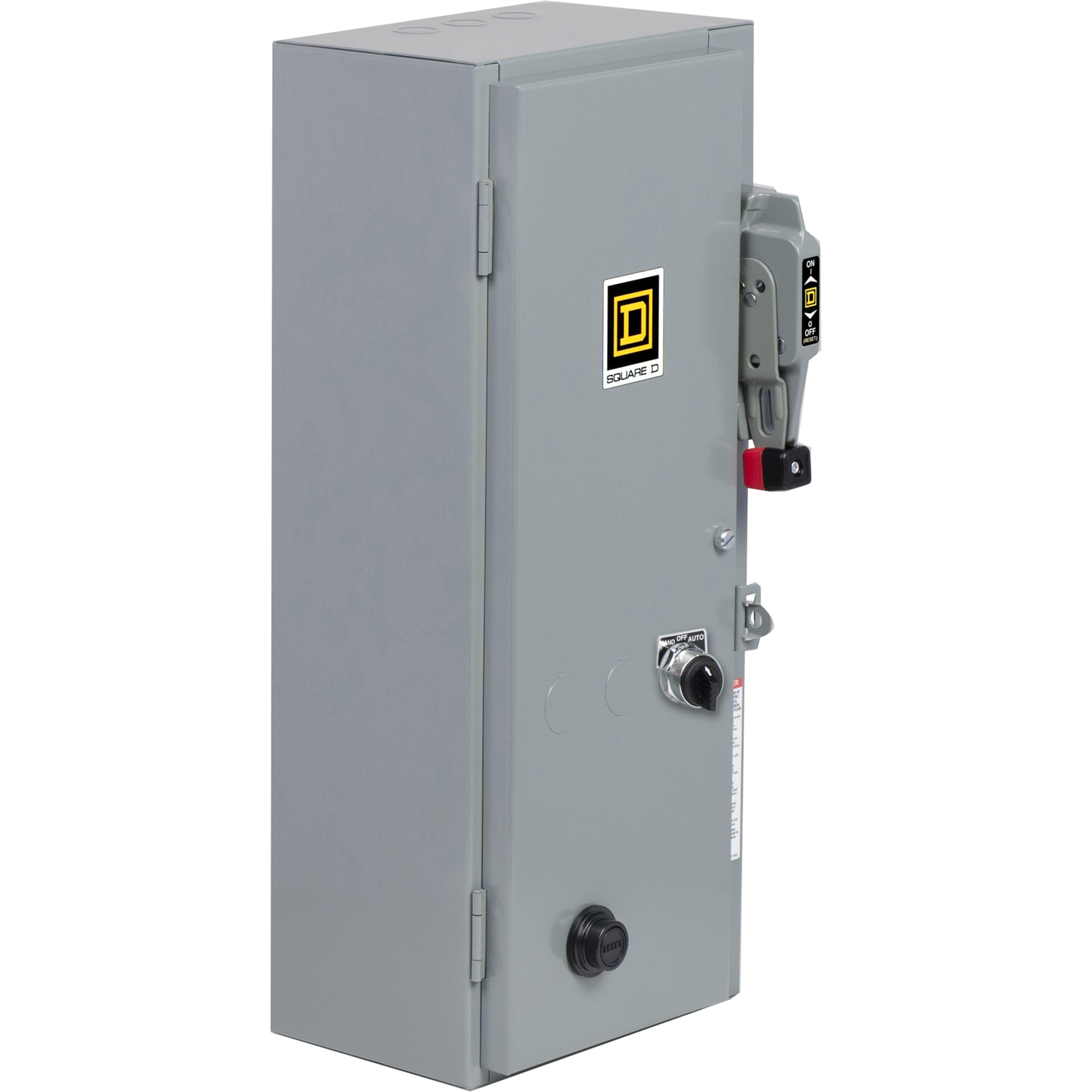

Square D™ 8538SBG11V02CS Type S Combination Magnetic Starter With Non-Fusible Disconnect Switch, 110 VAC at 50 Hz/120 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure
Sku #78590101962
MFG #8538SBG11V02CS
Attributes
| Type: | Type S |
| Voltage Rating: | 600 V AC |
| Frequency Rating: | 50/60 Hz |
| Series: | 8538 |
| Amperage Rating: | 18 A |
| Wattage: | 2.2 kW at 208/240 V AC/3.75 kW at 480/600 V AC |
- Construction, Infrastructure, Industrial Markets, Commercial Office Buildings And Building Automation, Used For Starting and Stopping Of AC Squirrel Cage Motors
- Combines the requirements of motor overload and short-circuit protection into one package
- Offers flexible compatibility with four overload relay types tailored for diverse motor protection needs
- Accelerates setup and servicing with door-mounted pilot devices for easy access and quick modifications
- Highly customizable with hundreds of configuration options to suit any application
- CSA LR584 Class 3211-04|ECCN EAR99|UL File E152395 NKJH7|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
- External Reset and Separate Control Circuit
- 18 Months
