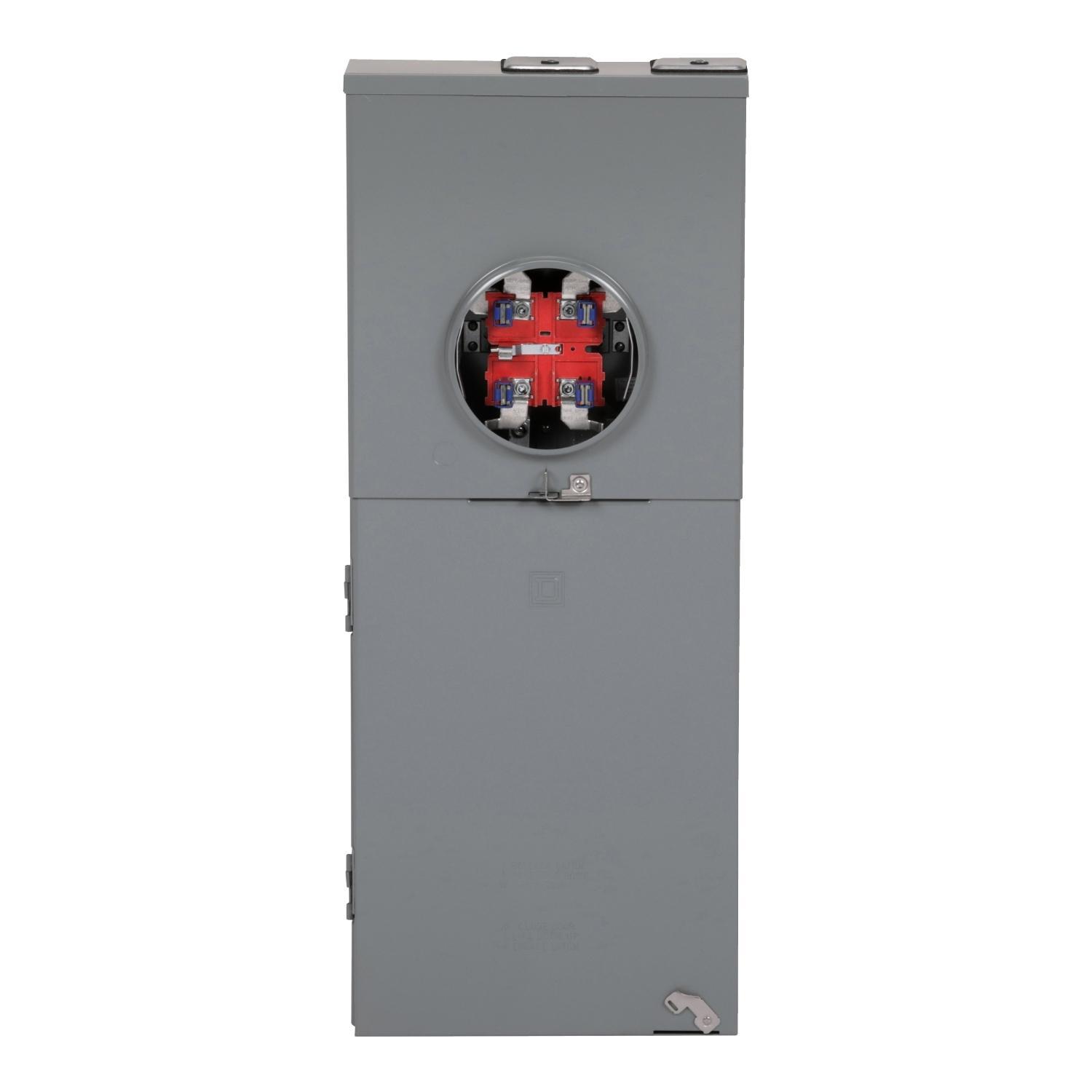

Square D™ QO® QC816F200CH 3-Wire 8-Circuit 16-Space Field Installed Rainproof Combination Service Entrance Meter Main With Horn Bypass, 120/240 V AC, 200 A, 1 Phase, NEMA 3R Enclosure
Sku #78590100108
MFG #QC816F200CH
Attributes
| Type: | 3-Wire 8-Circuit 16-Space Field Installed Rainproof |
| Amperage Rating: | 200 A |
| Frequency Rating: | 50/60 Hz |
| Voltage Rating: | 120/240 V AC |
| Phase: | 1 |
| Feed Type: | Overhead/Underground |
- Factory Installed Barrel Lock and Load Side Feed-Through Lugs
- Residential Applications
- QO ringless meter mains support standard utility meters and a main disconnect breakers
- This single compact solution provides a time and space saving solution for contractors and installers
- Suitable for use as service entrance equipment
- CSED allows for the meter socket to integrate with the load center into one compact design
- 18 Months
- RoHS Compliant|UL 50|UL 67|UL 414 File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Certified|Federal Specification W-P-115C|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|CSA Approved
