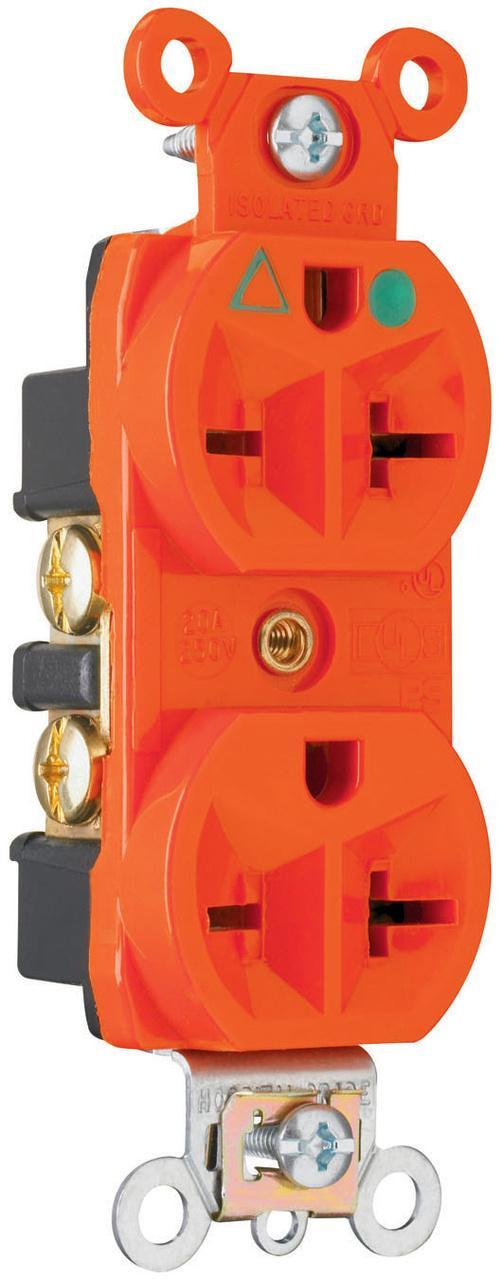

Pass & Seymour® IG8800 Duplex Heavy Duty Isolated Ground Straight Blade Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, Orange
Sku #78500788053
MFG #IG8800
Attributes
| Type: | Duplex Heavy Duty Isolated Ground |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 250 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 6-20R |
- CSA C22.2 No. 42|ECCN: EAR99|UL 498|UL 92 V-2 Flammability Rated
- Healthcare, Education, Commercial and Institutional Applications
- IG symbol and Isolated Ground markings for easy identification and circuit delineation
- Triple-wipe brass contacts ensure lasting, positive contact with plug blades
- High-impact resistant nylon face resists impacts and scrapes
- Corrosion-resistant plated steel strap
- Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes
- Side and internal screw-pressure-plate back wire capability with 14 - 10 AWG copper or copper-clad, solid or stranded wire
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
