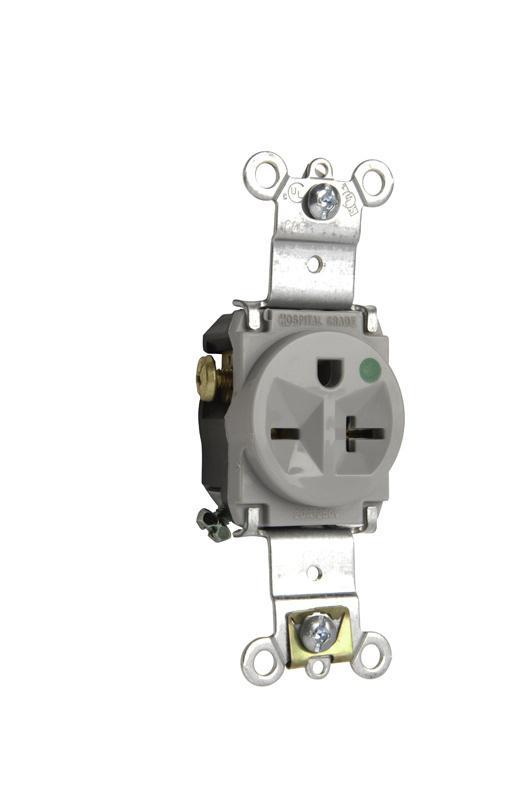

Pass & Seymour® 8801GRY Heavy Duty Single Straight Blade Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, Gray
Sku #78500788043
MFG #8801GRY
Attributes
| Type: | Heavy Duty Single |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 250 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 6-20R |
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly
- One-piece brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Internal screw-pressure-plate back wire capable of accepting 14 - 10 AWG solid or stranded copper or copper-clad wire
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- http://www.youtube.com/watch?v=_SjD8max4i3
- Healthcare, Education, Commercial and Institutional Applications
- CSA C22.2 No. 42 File No. LR16063|cUL Listed|ECCN: EAR99|Federal Specification W-C-596|UL 498 File No. E140596|UL 92 V-2 Flammability Rated
