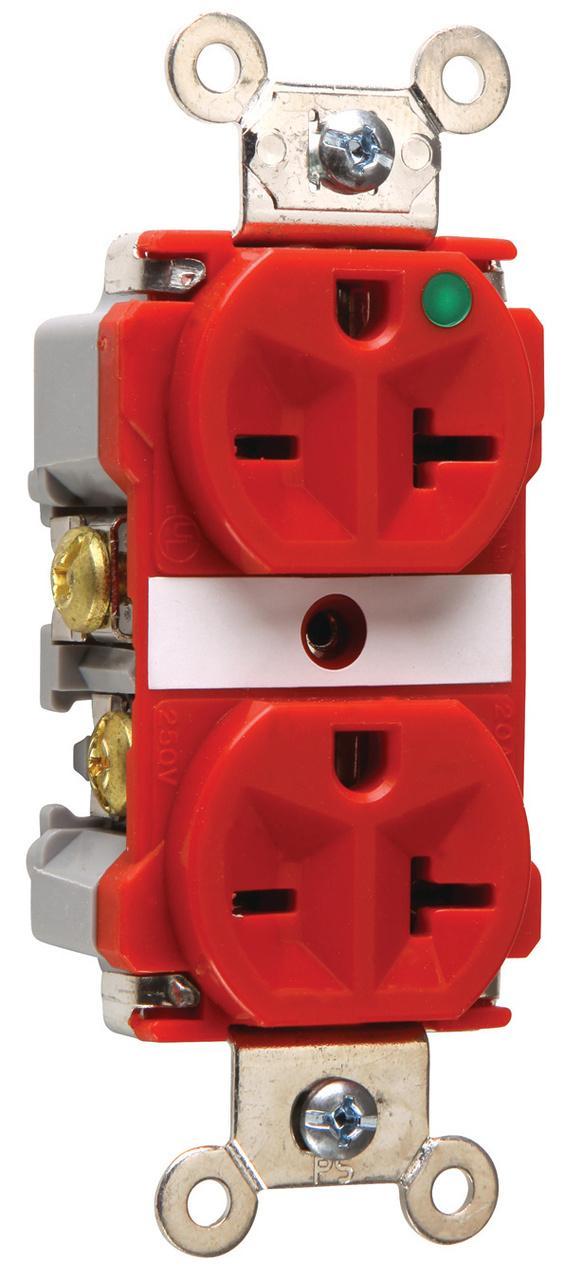

Pass & Seymour® 8800RED Duplex Extra Heavy Duty Straight Blade Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, Red
Sku #78500788034
MFG #8800RED
Attributes
| Type: | Duplex Extra Heavy Duty |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 250 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 6-20R |
- One-piece nickel-plated brass mounting strap with integral ground
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- .040 in thick, nickel-plated brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Oversized 10 deep tri-drive head brass terminal and ground screws
- External nickel-plated screw-presure-plate back wire clamps with 10 brass terminal screws for visual assurance of a good connection
- Commercial Applications
- CSA C22.2 No. 42|cULus Listed|ECCN: EAR99|UL 498|UL 94 V-2 Flammability Rated|UL 94 5VA Flammability Rated
