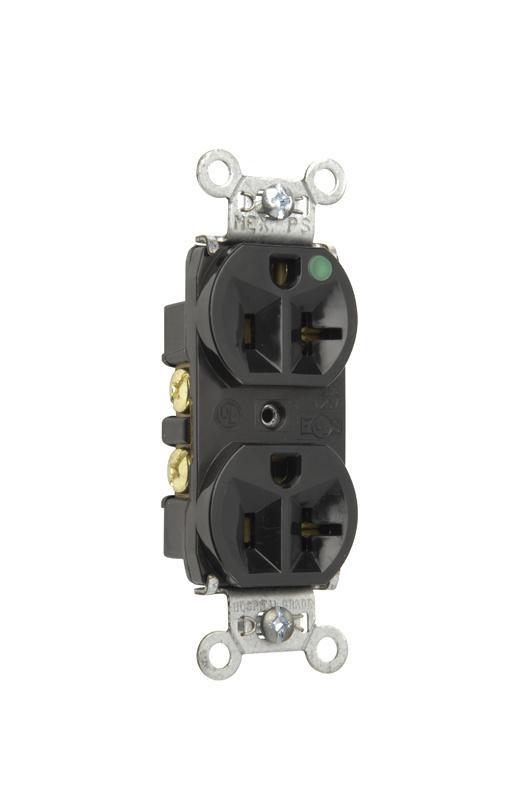

Pass & Seymour® 8300HBK Compact Duplex Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Black
Sku #78500786138
MFG #8300HBK
Attributes
| Type: | Compact Duplex Heavy Duty |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Frequency Rating: | 60 Hz |
| Number of Wires: | 3 |
- ANSI/IEEE C62.41|ANSI/IEEE C62.45|ARRA Compliant|Buy American Act Compliant|CSA C22.2 No. 42 File No. LR16063|ECCN: EAR99|Federal Specification W-C-596|UL 498|UL 1449 File No. E140596|UL 92 V-2 Flammability Rated|UL 94 V-2 Flammability Rated
- Healthcare, Education, Commercial and Institutional Applications
- Impact-resistant nylon face
- .032 in thick, brass, triple-wipe power contacts for lasting retention
- Easily accessible break-off line contact connecting tab for split circuit wiring
- Corrosion-resistant, zinc-plated steel strap is locked in
- Internal screw-pressure-plate back wire and side wire line terminals accept 14 - 10 AWG copper or copper-clad conductors
- Auto-ground clip assures positive ground
- Compact design for easy installation
- Tri-drive terminal and mounting screws
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
