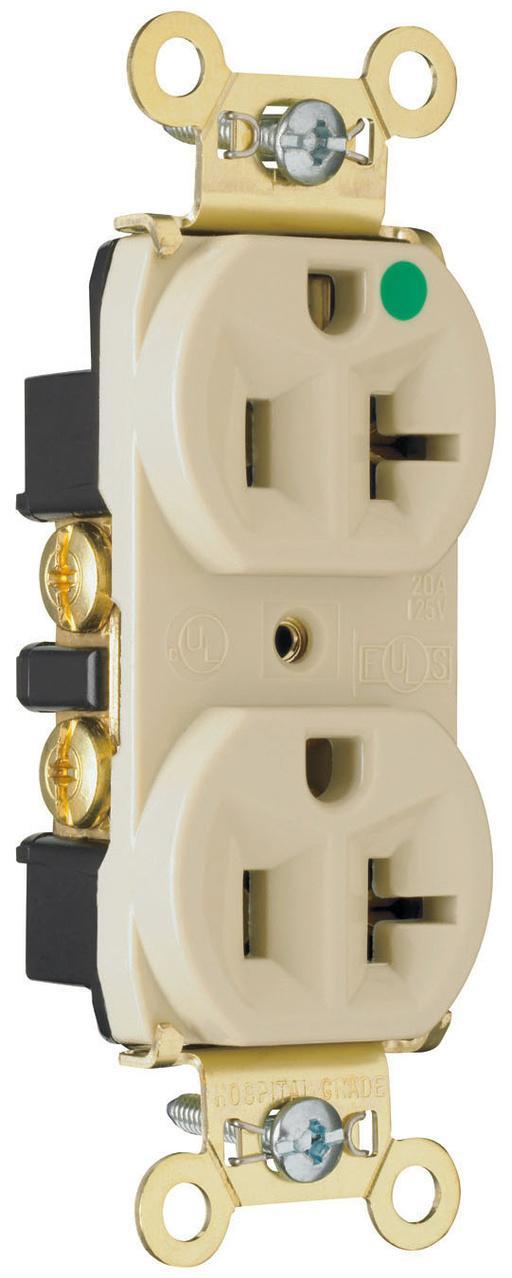

Pass & Seymour® PS8300HI Duplex Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Ivory
Sku #78500786002
MFG #PS8300HI
Attributes
| Type: | Duplex Heavy Duty |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-20R |
- CSA C22.2 No. 42 File No. LR16063|ECCN: EAR99|Federal Specification W-C-596|UL 498 File No. E140596|UL 92 V-2 Flammability Rated
- Healthcare, Education, Commercial and Institutional Applications
- Heavy-duty, brass strap for added strength and ground conductivity
- Strap tabs wrap around face to prevent strap from separating from face and back body
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Tri-drive brass terminal screws
- Two back wire holes for more wiring flexibility
- Auto-ground clip assures positive ground
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
