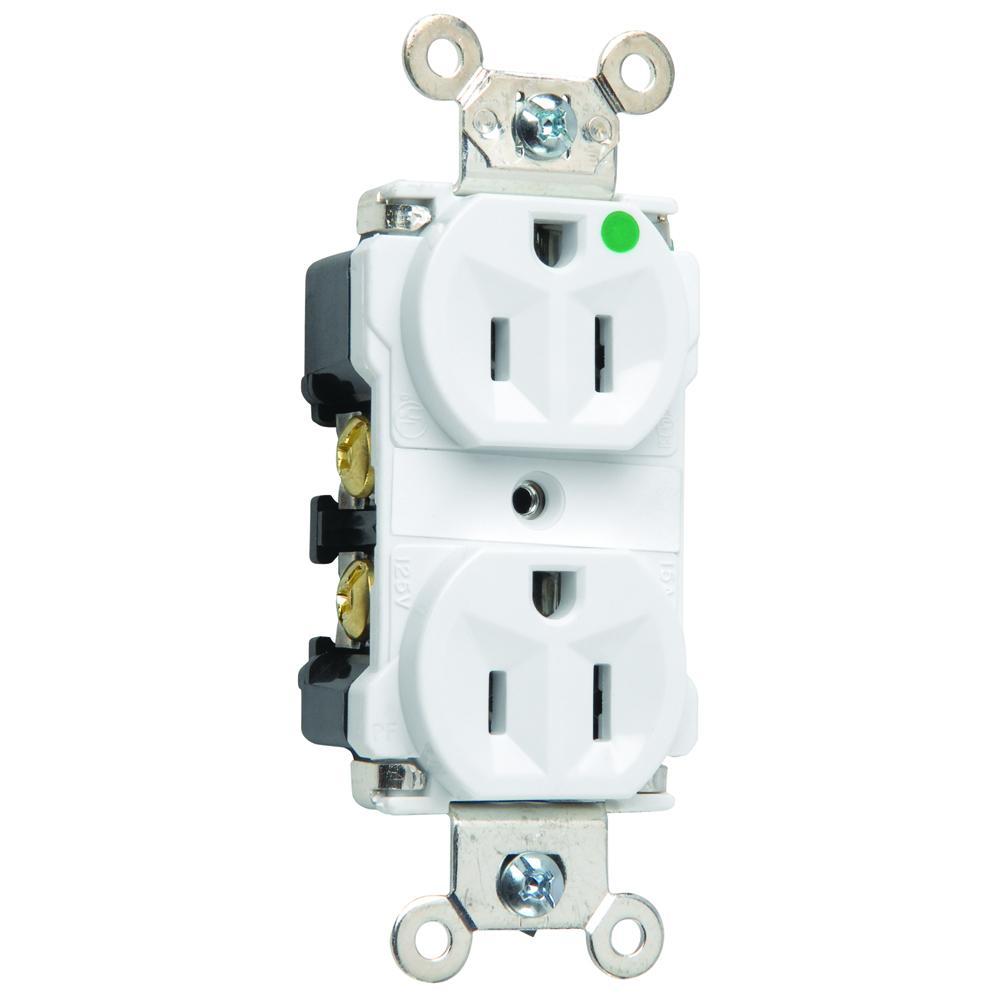

Pass & Seymour® 8200W Duplex Extra Heavy Duty Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Sku #78500782011
MFG #8200W
Attributes
| Type: | Duplex Extra Heavy Duty |
| Amperage Rating: | 15 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Frequency Rating: | 60 Hz |
| Number of Wires: | 3 |
- One-piece nickel-plated brass mounting strap with integral ground
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- .040 in thick, nickel-plated brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Oversized 10 deep tri-drive head brass terminal and ground screws
- External nickel-plated screw-presure-plate back wire clamps with 10 brass terminal screws for visual assurance of a good connection
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Healthcare, Education, Commercial and Institutional Applications
- ANSI/IEEE C62.41|ANSI/IEEE C62.45|CSA C22.2 No. 42 File No. LR16063|cULus Listed|ECCN: EAR99|Federal Specification W-C-596|UL 498|UL 1449|UL Listed File No. E140596|UL 94 V-2 Flammability Rated|UL 94 5VA Flammability Rated
