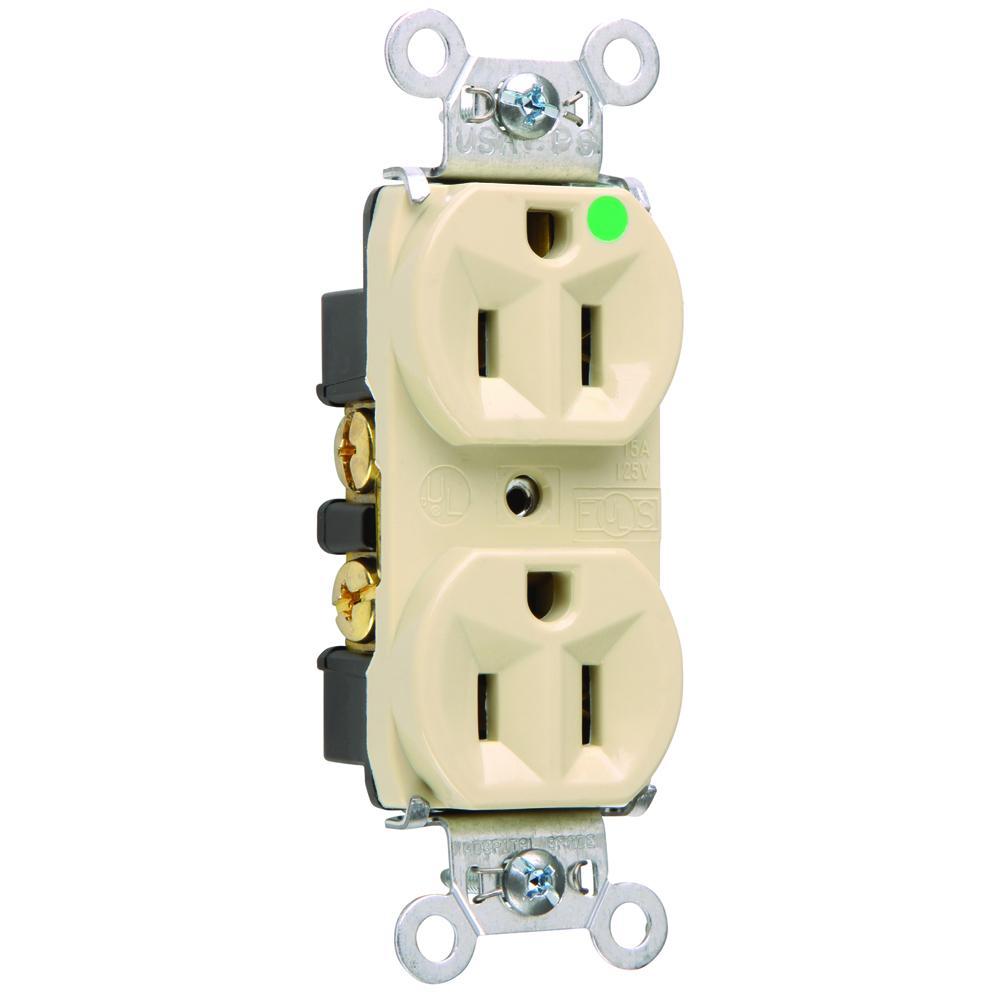

Pass & Seymour® 8200HI Compact Duplex Heavy Duty Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Ivory
Sku #78500782003
MFG #8200HI
Attributes
| Type: | Compact Duplex Heavy Duty |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-15R |
- Commercial Applications
- Impact-resistant nylon face
- One-piece heat-treated triple-wipe brass power contacts
- Easily accessible break-off line contact connecting tab for split circuit wiring
- Corrosion-resistant, zinc-plated steel strap is locked in
- Internal screw-pressure-plate back wire and side wire line terminals accept 14 - 10 AWG copper or copper-clad conductors
- High strength thermoplastic back body
- Auto-ground clip assures positive ground
- Compact design for easy installation
- Tri-drive terminal and mounting screws
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- CSA C22.2 No. 42|ECCN: EAR99|UL 498|UL 92 V-2 Flammability Rated
