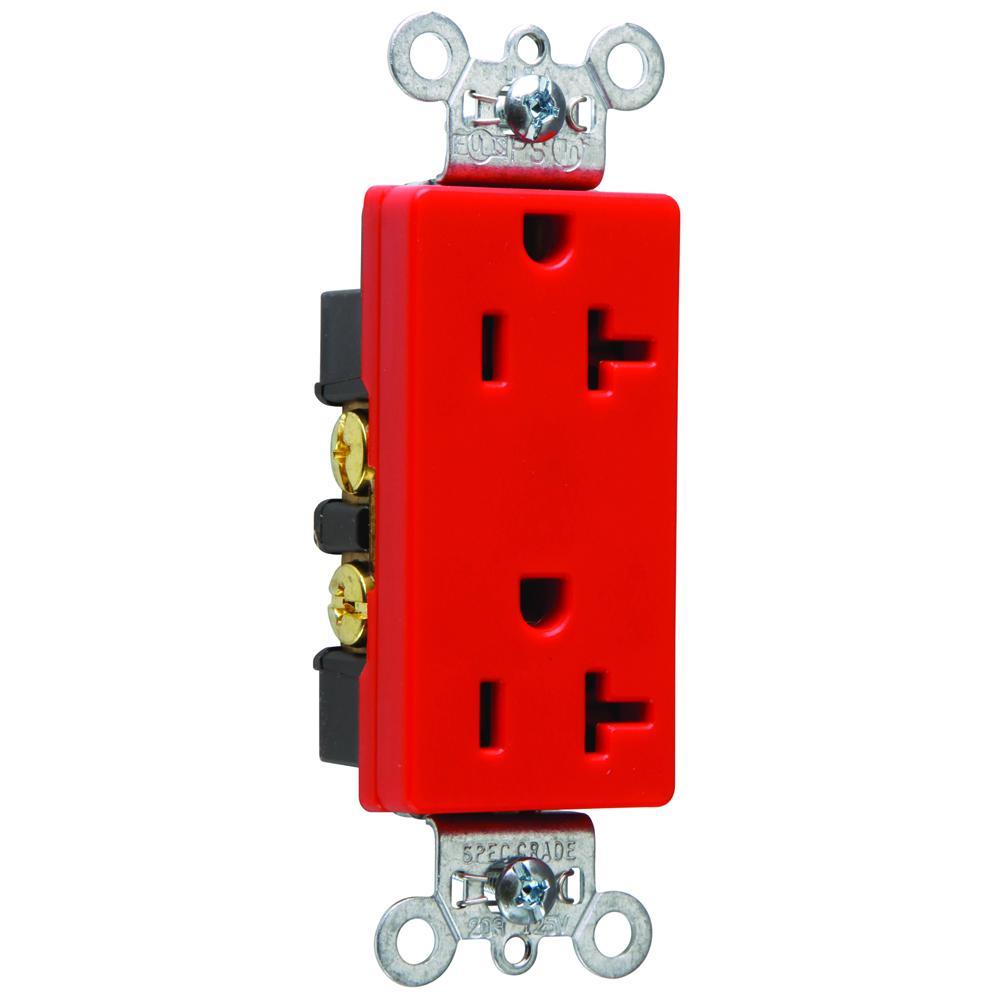

Pass & Seymour® 26352RED Decorator Duplex Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Red
Sku #78500778539
MFG #26352RED
Attributes
| Type: | Decorator Duplex Heavy Duty |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-20R |
- cUL Listed|CSA Certified|ECCN: EAR99|UL 498|UL 94 V-2 Flammability Rated
- Education, Institutional, Retail, Office, Hospitality, Lodging and Multiple Dwelling and Commercial Applications
- Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body
- Heavy-duty compact design for easier installation and long lasting performance
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face
- Terminal compartments isolated from each other for positive conductor containment
- All devices fit standard 26 opening wall plate
- Tri-drive terminal and mounting screws
- Auto-ground clip assures positive ground
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
