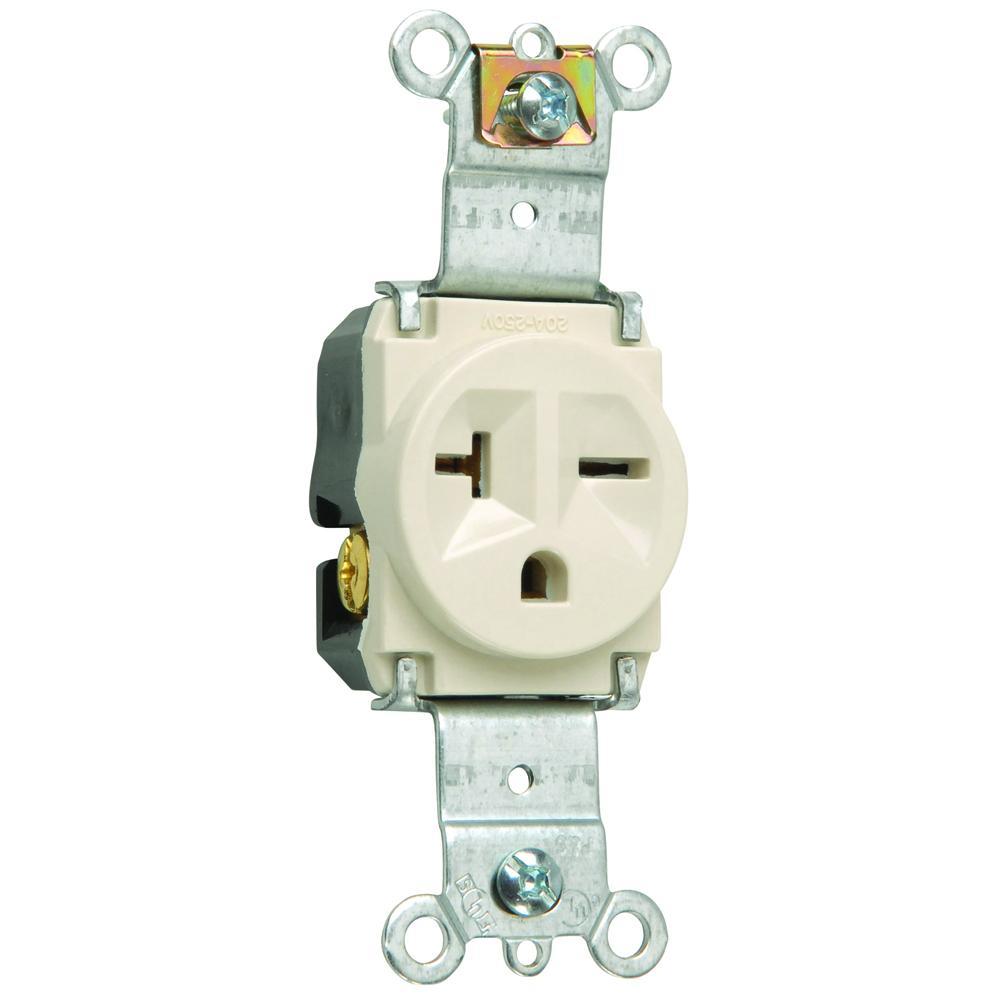

Pass & Seymour® 5871LA Heavy Duty Single Straight Blade Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, Light Almond
Sku #78500760800
MFG #5871LA
Attributes
| Type: | Heavy Duty Single |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 250 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 6-20R |
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly
- One-piece heat-treated triple-wipe brass power contacts
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Internal screw-pressure-plate back wire capable of accepting 14 - 10 AWG solid or stranded copper or copper-clad wire
- Terminal compartments isolated from each other for positive conductor containment
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- CSA C22.2 No. 42|ECCN: EAR99|UL 498|UL 94 V-2 Flammability Rated
- Commercial Applications
