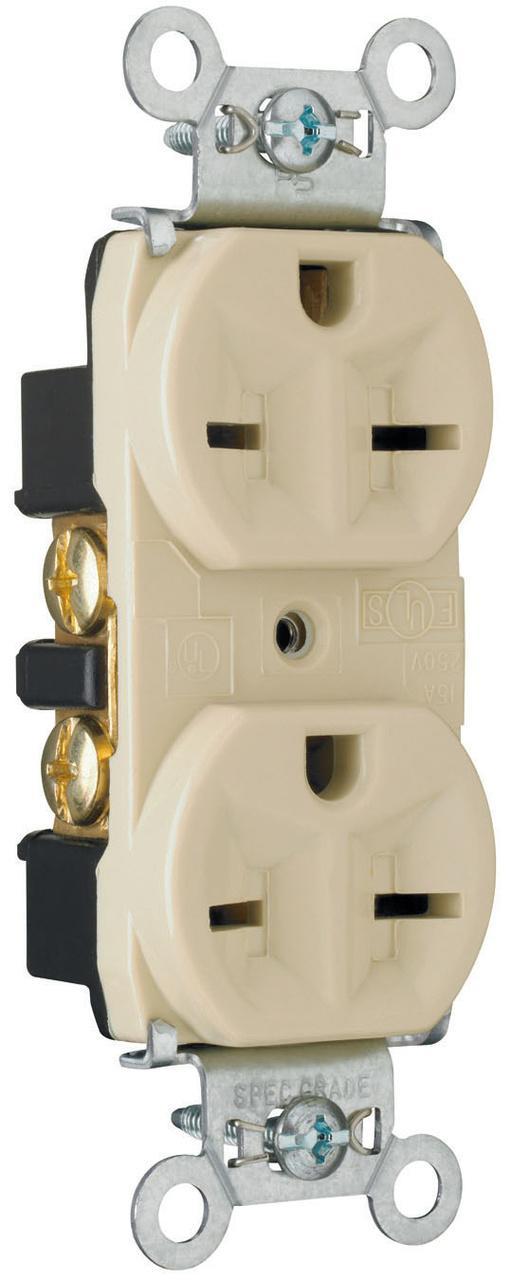

Pass & Seymour® 5662I Duplex Heavy Duty Straight Blade Receptacle, 250 V AC, 15 A, 2 Poles, 3 Wires, Ivory
Sku #78500756621
MFG #5662I
Attributes
| Type: | Duplex Heavy Duty |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 250 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 6-15R |
- CSA C22.2 No. 42|cULus Listed|ECCN: EAR99|UL 498|UL 94 V-2 Flammability Rated
- Heavy-duty, brass strap for added strength and ground conductivity
- .032 in thick, brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap around face to prevent strap from separating from face and back body
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- High strength nylon face
- Internal screw-pressure-plate back and side wired to accept 14 and 10 AWG stranded or solid copper or copper-clad conductors
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Commercial Applications
