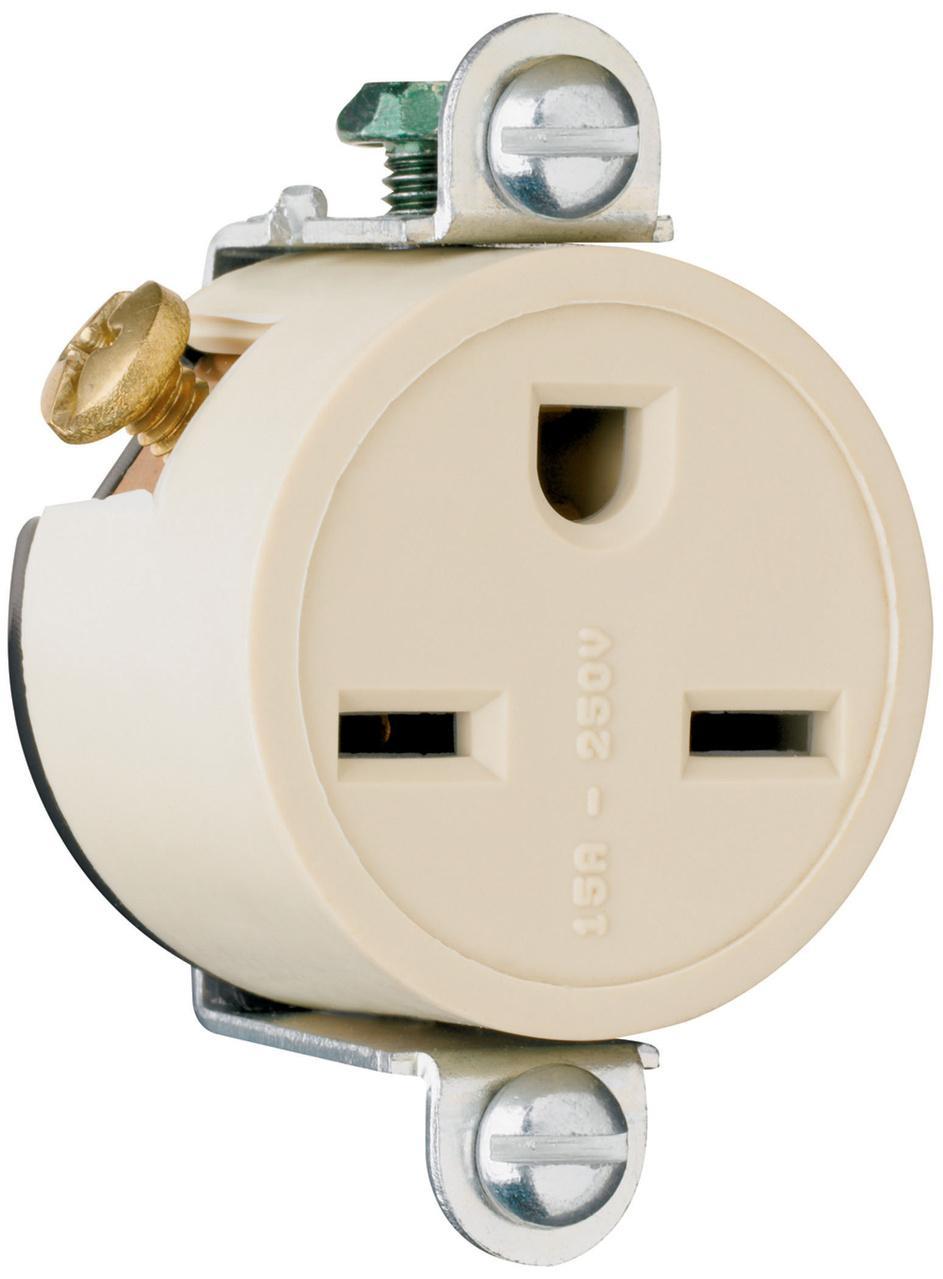

Pass & Seymour® 5658I 3-Phase Single Short Strap Wall Mount Straight Blade Receptacle, 250 V AC, 15 A, 2 Poles, 3 Wires, Ivory
Sku #78500756581
MFG #5658I
Attributes
| Type: | 3-Phase Single Short Strap Wall Mount |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 250 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | 5-15R |
- Auto-ground clip assures positive ground
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
- Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength
- Backed-out tri-drive steel terminal screws
- One-piece brass triple-wipe power contacts for lasting retention
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- Commercial/Residential Applications
- CSA C22.2 No.42|UL 498
