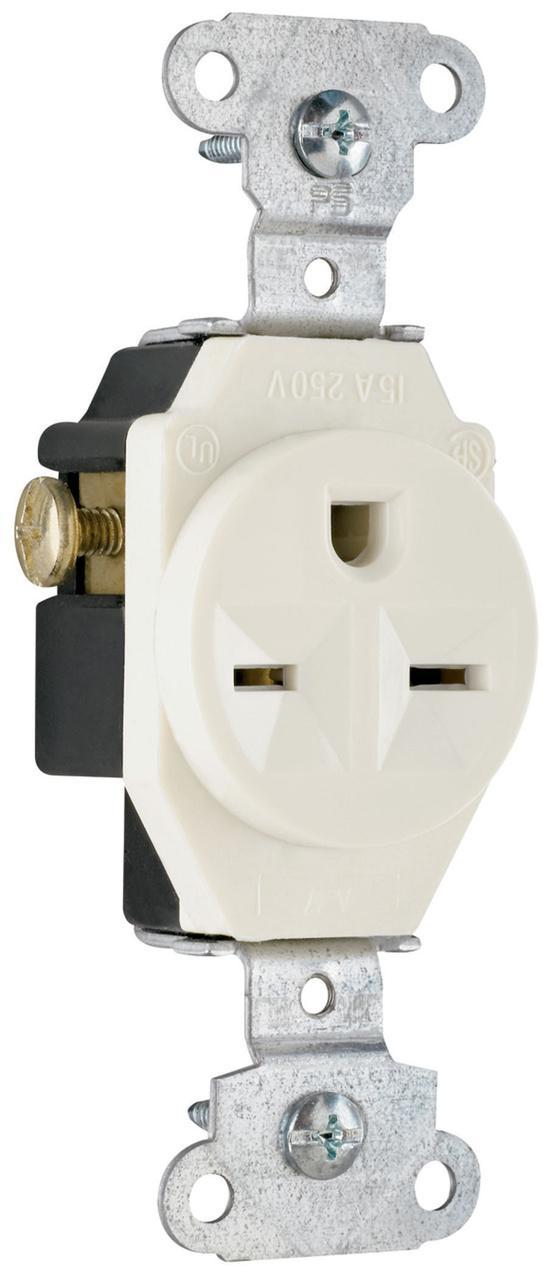

Pass & Seymour® 5651LA Heavy Duty Single Straight Blade Receptacle, 250 V AC, 15 A, 2 Poles, 3 Wires, Light Almond
Sku #78500756515
MFG #5651LA
Attributes
| Type: | Heavy Duty Single |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 250 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 6-15R |
- Auto-ground clip assures positive ground
- Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength
- Backed-out tr-drive steel terminal screws
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for increased wiring flexibility
- One-piece brass triple-wire power contacts for lasting retention
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- CSA C22.2 No. 42|ECCN: EAR99|UL 498|UL 94 V-2 Flammability Rated
- Commercial Applications
