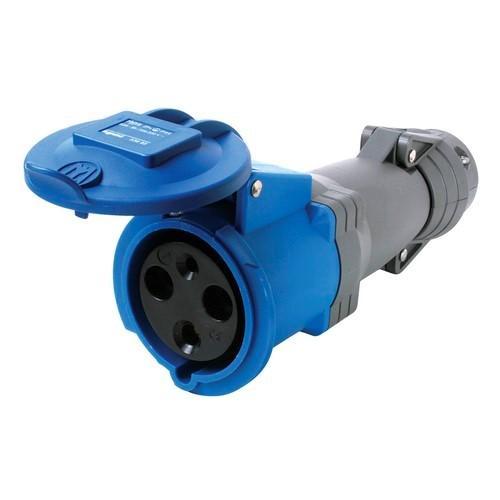

Pass & Seymour® 53682 3-Phase International Splashproof Pin and Sleeve Connector, 220/240 V AC, 63 A, 2 Poles, 3 Wires, Gray
Sku #78500755170
MFG #53682
Attributes
| Type: | 3-Phase International Splashproof |
| Amperage Rating: | 63 A |
| Number of Poles: | 2 |
| Voltage Rating: | 220/240 V AC |
| Frequency Rating: | 60 to 400 Hz |
| Number of Wires: | 3 |
- All Pass & Seymour® watertight pin and sleeve plugs, connectors, receptacles and inlets bring you the features to enhance versatility, reliability and safety
- North American products come completely ready to wire, for quick, simple installation
- And all feature chemical-resistant thermoplastic construction
- Shrouded, nickel plated, solid brass pins provide corrosion protection and excellent conductivity
- An exclusive, hinged cord-grip eliminates loose parts that get lost
- 3000 VAC maximum dielectric voltage withstand voltage
- Valox® cover, stainless steel cover spring, cord-grip and assembly screws, neoprene sealing and housing gasket, Valox® back body, polyamide 6 contact carrier, brass with nickel plate sleeves, zinc plated steel terminal screws, polyamide 66 cord grip, natural rubber grommet material
- 30 deg C temperature rise
- International splash proof device
- Watertight, rubber, combination head screws and locking ring
- Round portable service cord mounting
- IEC 309|CSA Certified|UL Listed
- Food and Beverage, Pulp and Paper Mills, Mines, Refrigeration, Petrochemical, Water/Waste Water, Shipbuilding, Temporary Power and Industrial Applications
