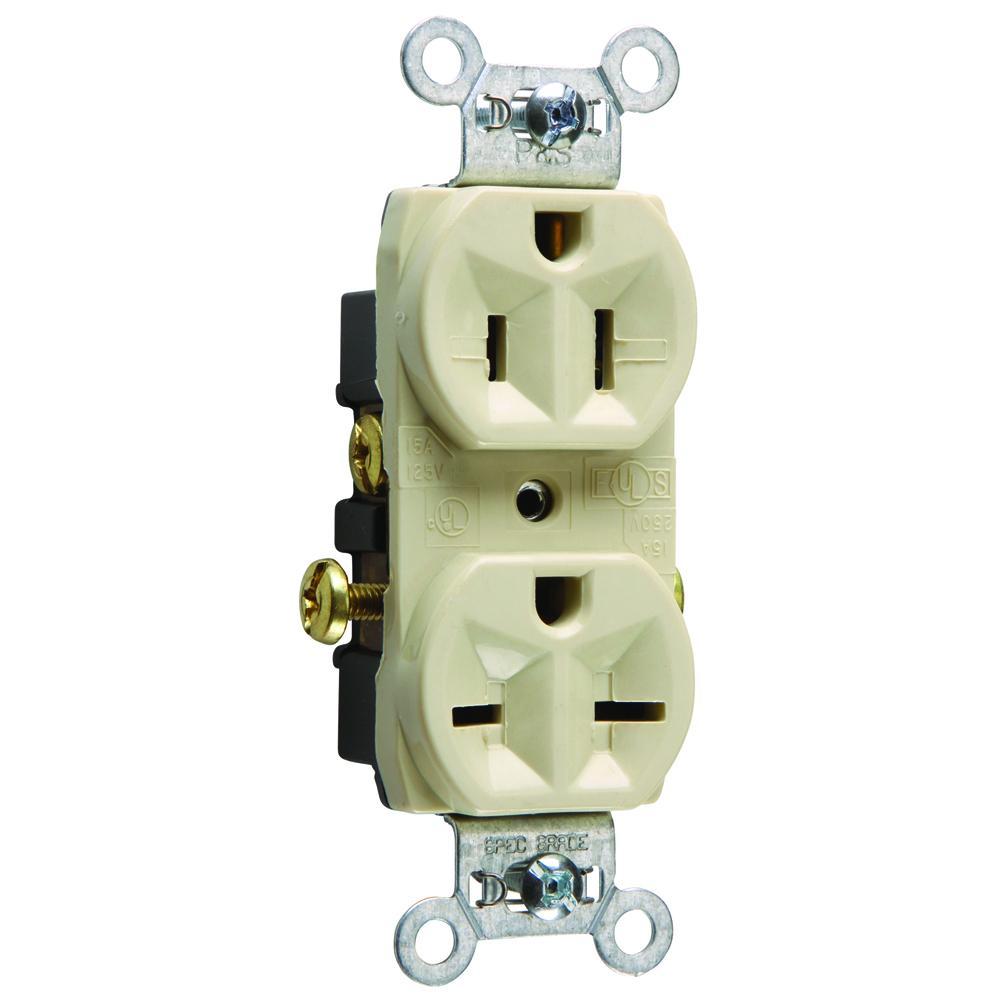

Pass & Seymour® 5290I Combination Duplex Straight Blade Receptacle, 125/250 V AC, 15 A, 2 Poles, 3 Wires, Ivory
Sku #78500752901
MFG #5290I
Attributes
| Type: | Combination Duplex |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125/250 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-15R/6-15R |
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- .032 in thick, brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- 8 hole internal screw-pressure-plate back wire terminals accept 10 - 14 AWG solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- CSA C22.2 No. 42|ECCN: EAR99|UL 498|UL 94 V-2 Flammability Rated
- Hard, Commercial Applications
