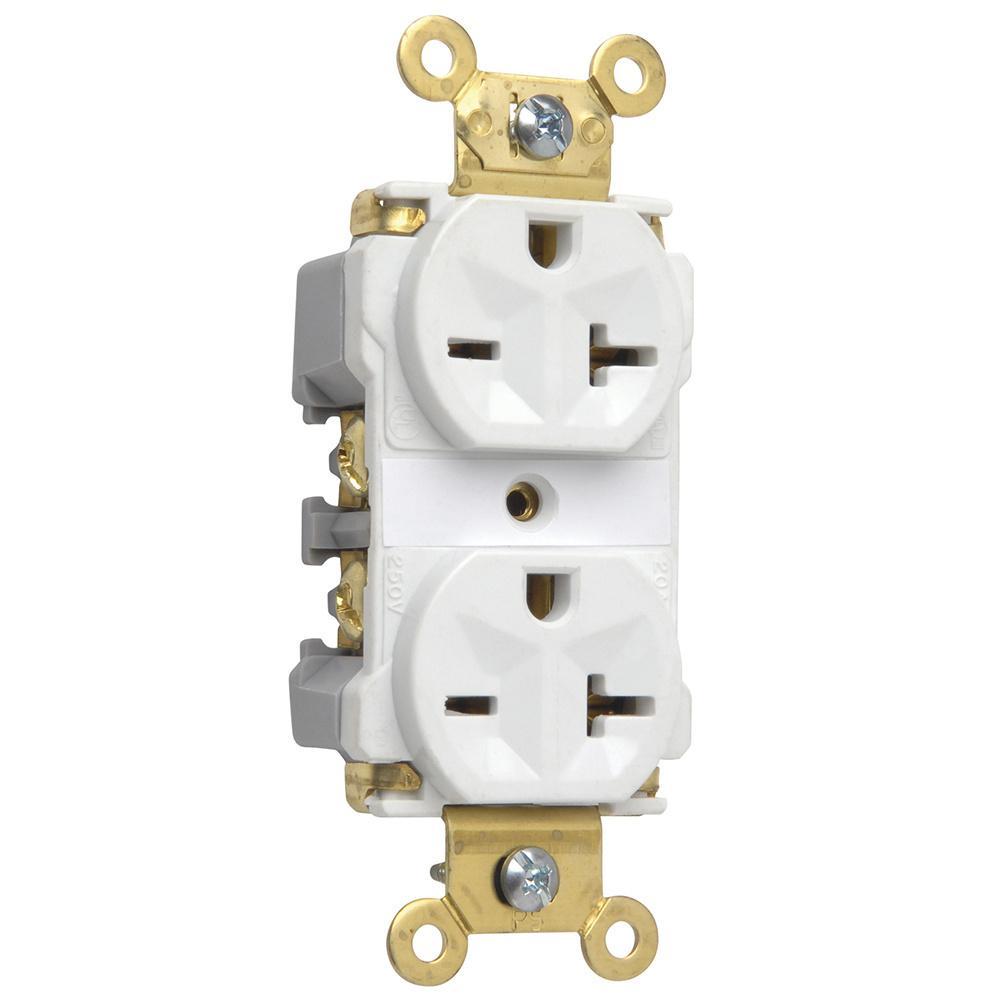

Pass & Seymour® 5862AW Duplex Extra Heavy Duty Straight Blade Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, White
Sku #78500752839
MFG #5862AW
Attributes
| Type: | Duplex Extra Heavy Duty |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 250 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 6-20R |
- Industrial and Institutional Applications
- CSA C22.2 No. 42|cULus Listed|ECCN: EAR99|Federal Specification Specified|UL 498|UL 94 V-2 Flammability Rated
- One-piece brass mounting strap with integral ground
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- .036 in thick, brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Oversized 10 deep tri-drive head brass terminal and ground screws
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
Pass & Seymour®Pass & Seymour® 5862AW Duplex Extra Heavy Duty Straight Blade Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, White
SKU #78500752839
MFG #5862AW
