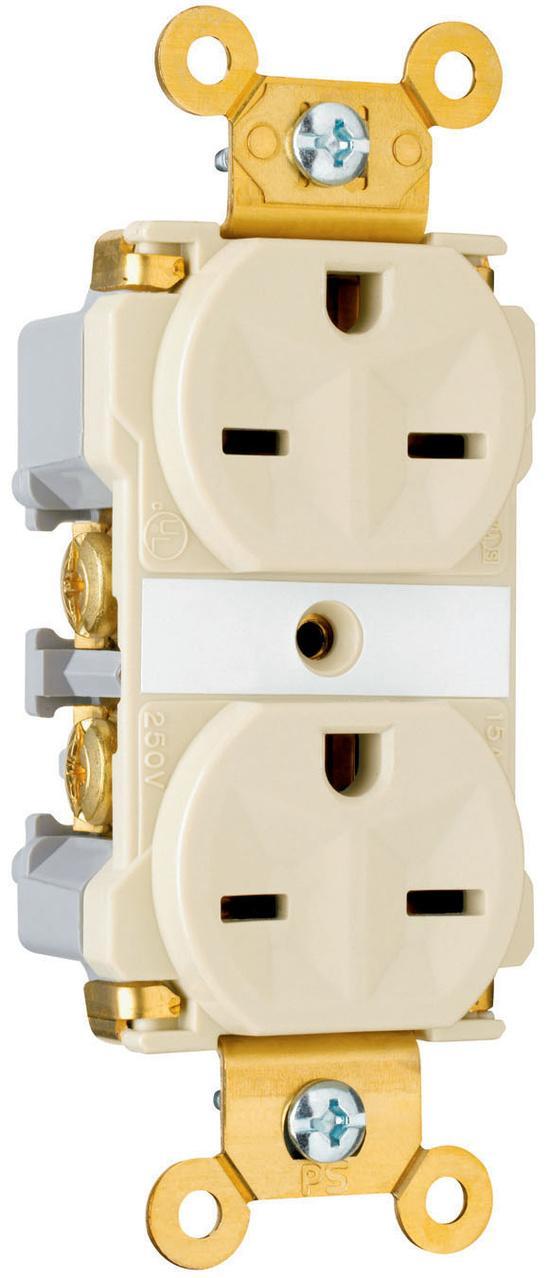

Pass & Seymour® 5662AW 3-Phase Duplex Extra Heavy Duty Straight Blade Receptacle, 250 V AC, 15 A, 2 Poles, 3 Wires, White
Sku #78500752829
MFG #5662AW
Attributes
| Type: | 3-Phase Duplex Extra Heavy Duty |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 250 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-15R |
- UL 498 File No. E140596/WC596|CSA C22.2 No. 42 File No. LR16063
- One-piece brass mounting strap with integral ground
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- .036 in thick, brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Oversized 10 deep tri-drive head brass terminal and ground screws
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- Industrial, Health Care, Education and Institutional Applications
