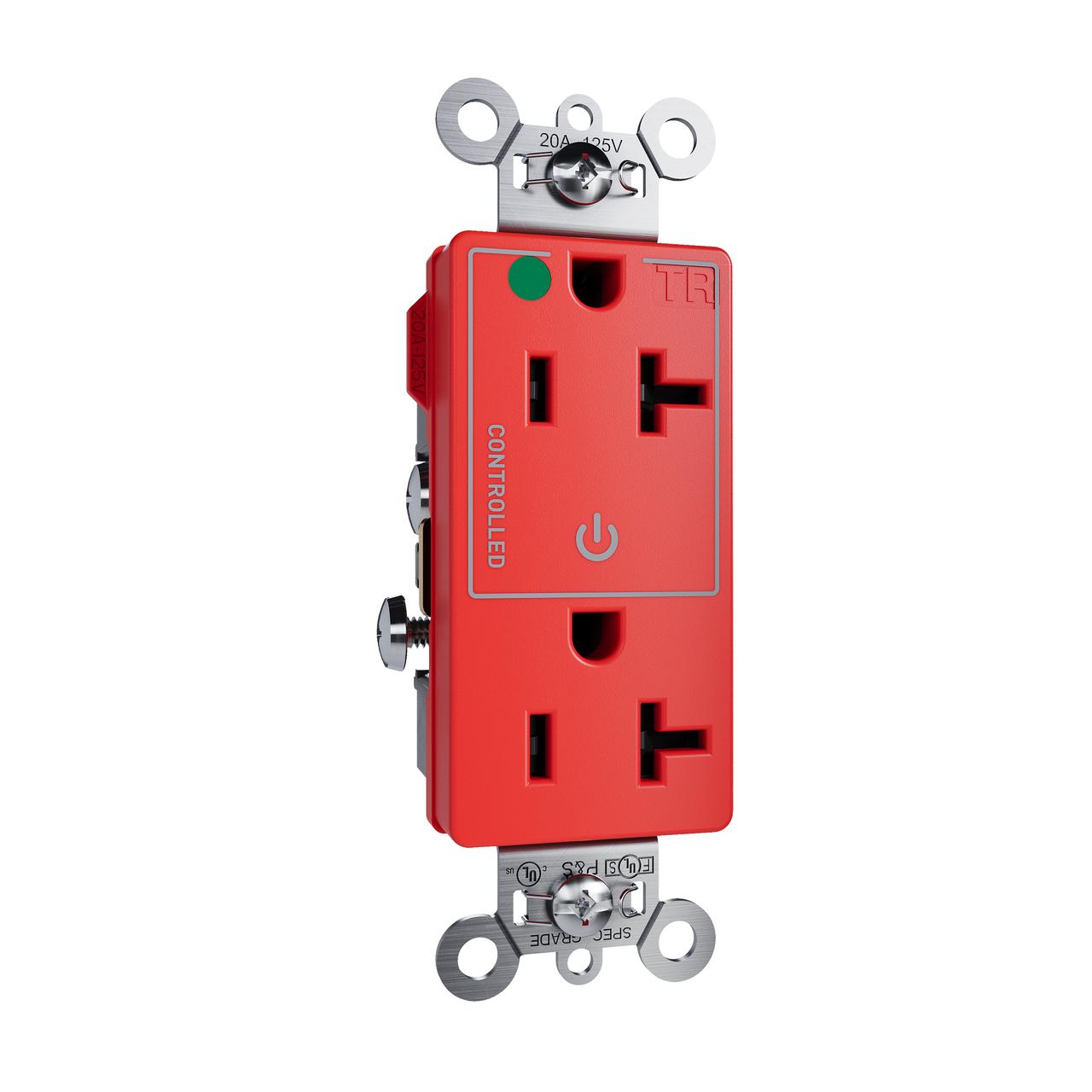

Pass & Seymour® TR26362HGCHRED Heavy Duty Hospital Grade Receptacle
Sku #78500749574
MFG #TR26362HGCHRED
Attributes
| Type: | Heavy Duty Hospital Grade |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V |
| Number of Poles: | 2 |
| Grade: | Commercial |
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Permanent controlled markings on face of receptacle
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- .032 in thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- For Commercial, Hospital Grade
- cULUS|CSA|IEC|FEDSPEC|Title 24 Compliant
