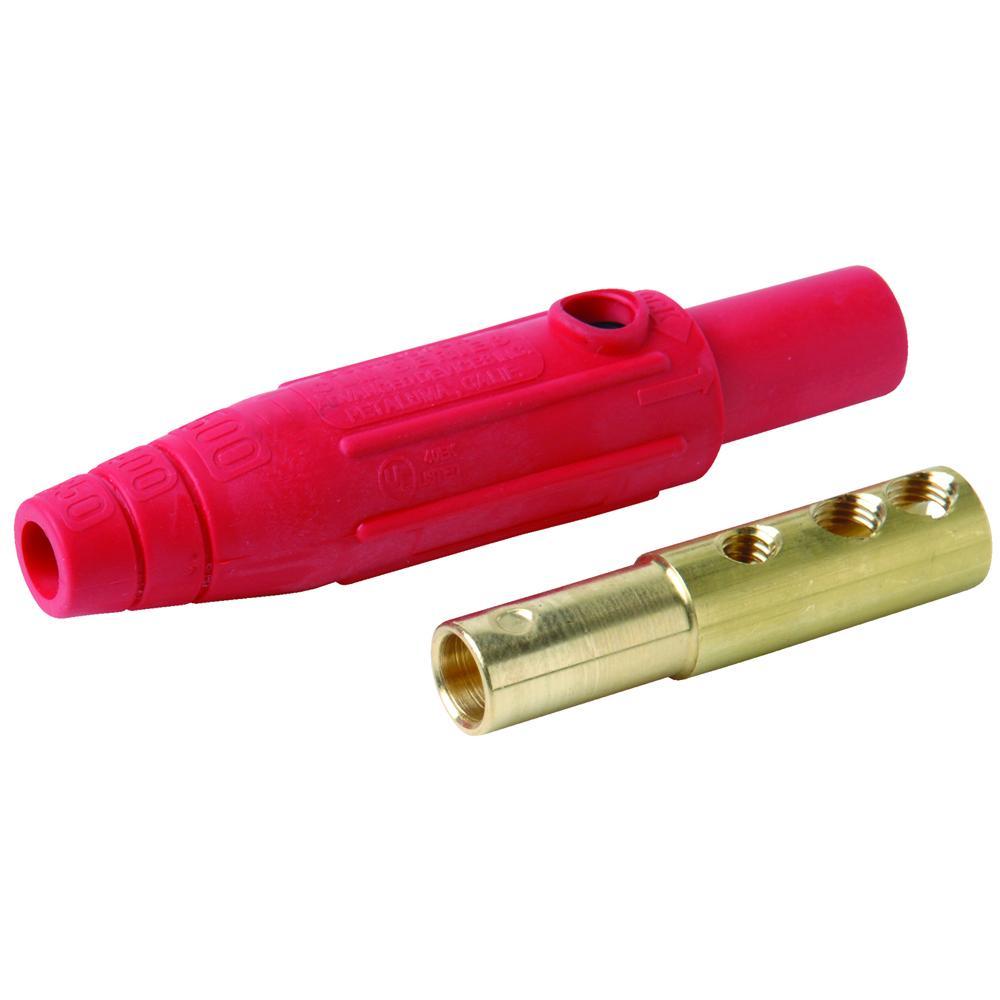

Pass & Seymour® PSM2FR 15 Series 1-Pole Cam-Type In-Line Connector, 600 V AC, 150 A, 8 to 2 AWG Wire, Female Connection, NEMA 3R/4 NEMA Rating
Sku #78500730892
MFG #PSM2FR
Attributes
| Type: | 1-Pole Cam-Type |
| Voltage Rating: | 600 V AC |
| Wire Size: | 8 to 2 AWG |
| Series: | 15 Series |
| Amperage Rating: | 150 A |
| Connection Type: | Female |
- Thermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA Type 3R and 4 integrity
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
- Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity
- Heavy-duty hex set screws allow greater termination torque
- For movie and other entertainment production, stage productions, fairs and carnivals, theme parks, concert venues, arenas and convention centers, mining and construction, shipping, airports, many other portable/temporary and commercial/industrial applications
- cCSAus Certified|CSA Certified|ECCN: EAR99|UL 94 V-2 Flammability Rated
