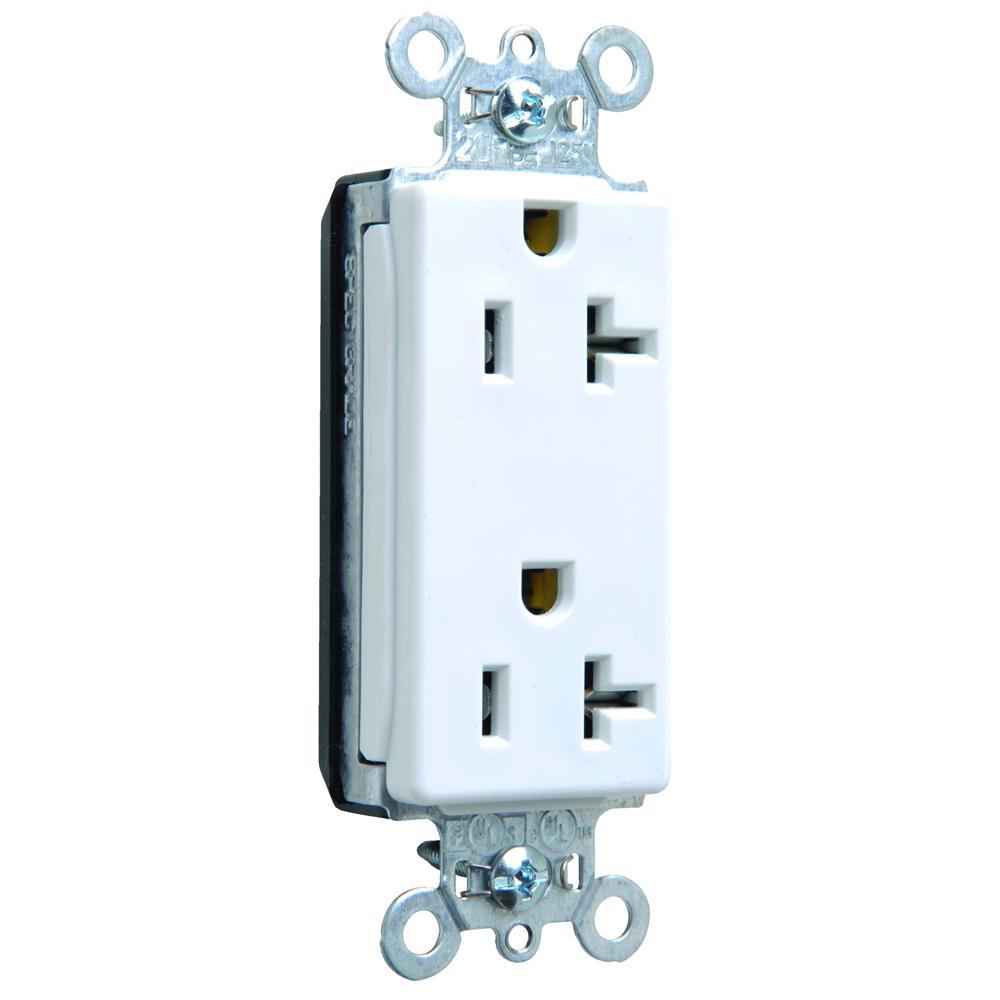

Pass & Seymour® PlugTail® PT26352W Decorator Duplex Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Sku #78500730798
MFG #PT26352W
Attributes
| Type: | Decorator Duplex |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-20R |
- ECCN: EAR99|UL 498 File No. E140596|UL 92 V-2 Flammability Rated|UL 94 V-2 Flammability Rated|UL Listed
- Healthcare, Education, Commercial and Institutional Applications
- .036 in thick, brass, triple-wipe power contacts for lasting retention
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
- Crimped and welded contacts
- Auto-ground clip assures positive ground
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- PlugTail Connector - 12 AWG, THHN, copper conductor, 6 in leads, stripped, solid or stranded, for use with PlugTail Receptacles only
