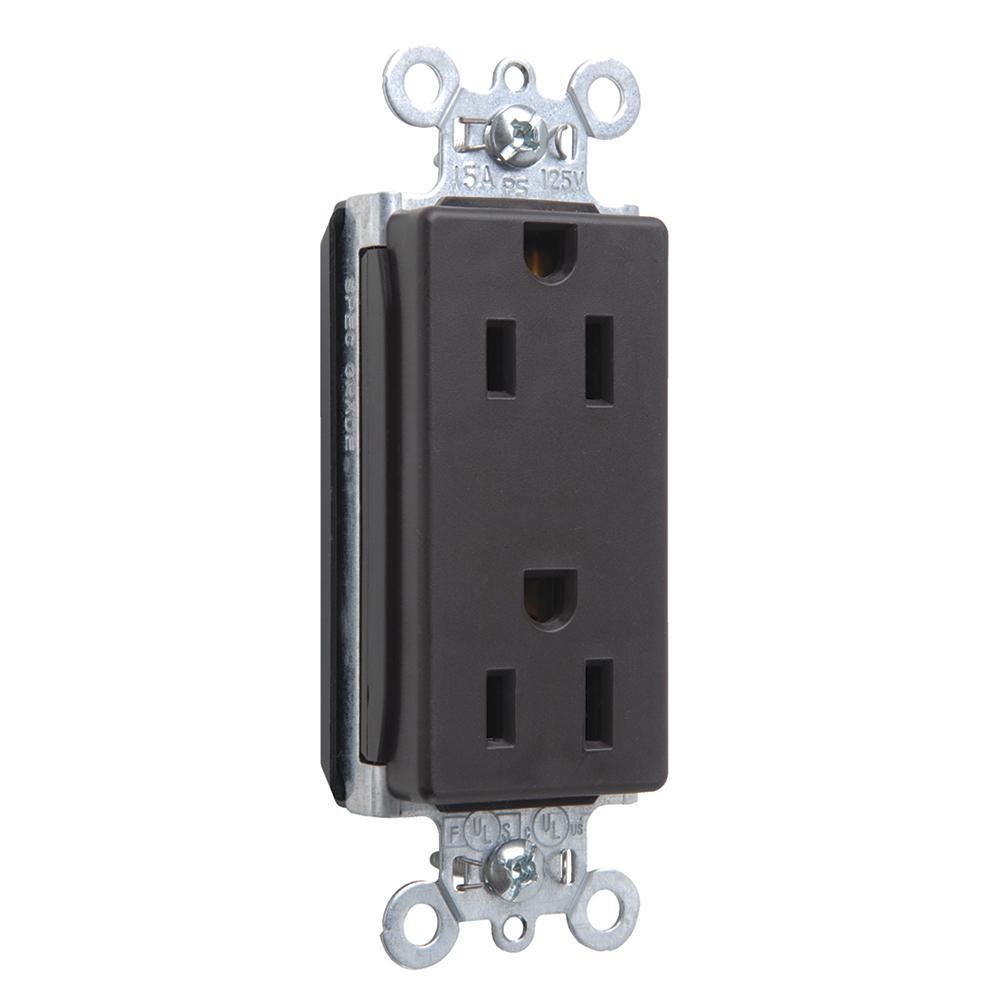

Pass & Seymour® Straight Blade Receptacle PT26252 3-Phase Decorator Duplex Wall Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Brown
Sku #78500730787
MFG #PT26252
Attributes
| Type: | 3-Phase Decorator Duplex Wall Mount |
| Amperage Rating: | 15 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | 5-15R |
- Commercial Applications
- .036 in thick, brass, triple-wipe power contacts for lasting retention
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
- Crimped and welded contacts
- Auto-ground clip assures positive ground
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- PlugTail Connector - 12 AWG, THHN, copper conductor, 6 in leads, stripped, solid or stranded, for use with PlugTail Receptacles only
- http://www.youtube.com/watch?v=_SjD8max4i191
- cULus Listed|cUL File No. E140596|UL 498 File No. E140596
