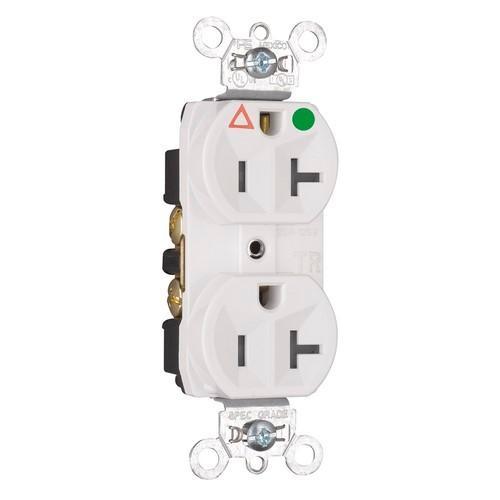

Pass & Seymour® IG8300W Duplex Heavy Duty Isolated Ground Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Sku #78500730152
MFG #IG8300W
Attributes
| Type: | Duplex Heavy Duty Isolated Ground |
| Amperage Rating: | 20 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 3 |
- Commercial Applications
- IG symbol and Isolated Ground markings for easy identification and circuit delineation
- High-impact resistant nylon face resists impacts and scrapes
- Corrosion-resistant plated steel strap
- Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
- CSA C22.2 No. 42|ECCN: EAR99|UL 498|UL 92 V-2 Flammability Rated
