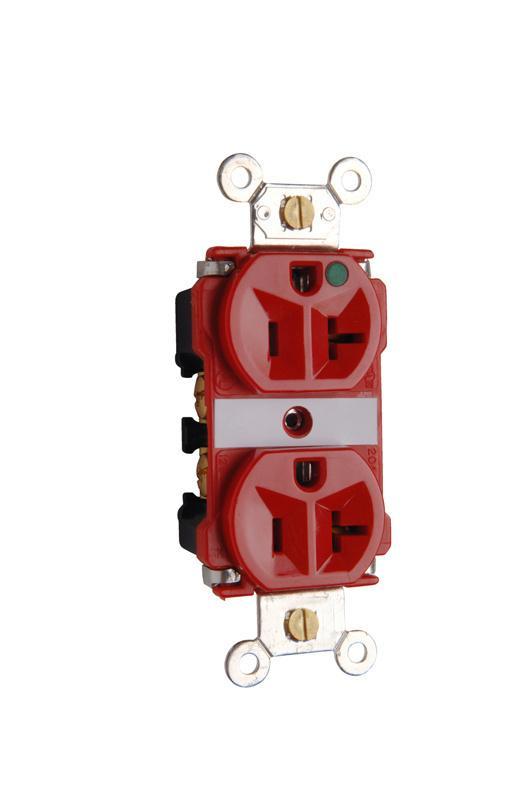

Pass & Seymour® 8300REDMRI Duplex Extra Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Red
Sku #78500726922
MFG #8300REDMRI
Attributes
| Type: | Duplex Extra Heavy Duty |
| Amperage Rating: | 20 A |
| Number of Wires: | 3 |
| Voltage Rating: | 125 V AC |
| Number of Poles: | 2 |
| NEMA Rating: | NEMA 5-20R |
- CSA C22.2 No. 42|ECCN: EAR99|Federal Specification Specified|UL 498|UL 94 V-2 Flammability Rated
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- Extra heavy-duty one-piece nickel-plated brass mounting strap with integral ground for superior structural integrity and long-term performance
- .036 in thick, brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External screw-presure-plate back wire clamps with 10 brass terminal screws for visual assurance of a good connection
- Auto-ground clip assures positive ground
- Commercial Applications
