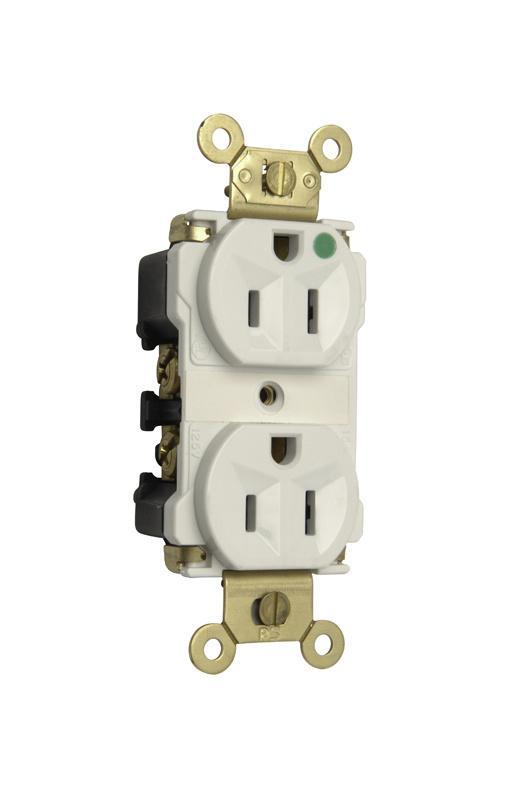

Pass & Seymour® 8200WMRI Duplex Extra Heavy Duty Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Sku #78500726910
MFG #8200WMRI
Attributes
| Type: | Duplex Extra Heavy Duty |
| Amperage Rating: | 15 A |
| Number of Poles: | 2 |
| Voltage Rating: | 125 V AC |
| Frequency Rating: | 60 Hz |
| Number of Wires: | 3 |
- Designed expressly for MRI applications
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- Extra heavy-duty one-piece nickel-plated brass mounting strap with integral ground for superior structural integrity and long-term performance
- .036 in thick, brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External screw-presure-plate back wire clamps with 10 brass terminal screws for visual assurance of a good connection
- Auto-ground clip assures positive ground
- Healthcare, Education, Commercial and Institutional Applications
- ANSI/IEEE C62.41|ANSI/IEEE C62.45|CSA C22.2 No. 42 File No. LR16063|ECCN EAR99|Federal Specification W-C-596|UL 498|UL 1449 File No. E140596|UL 92 V-2 Flammability Rated|UL 94 V-2 Flammability Rated
