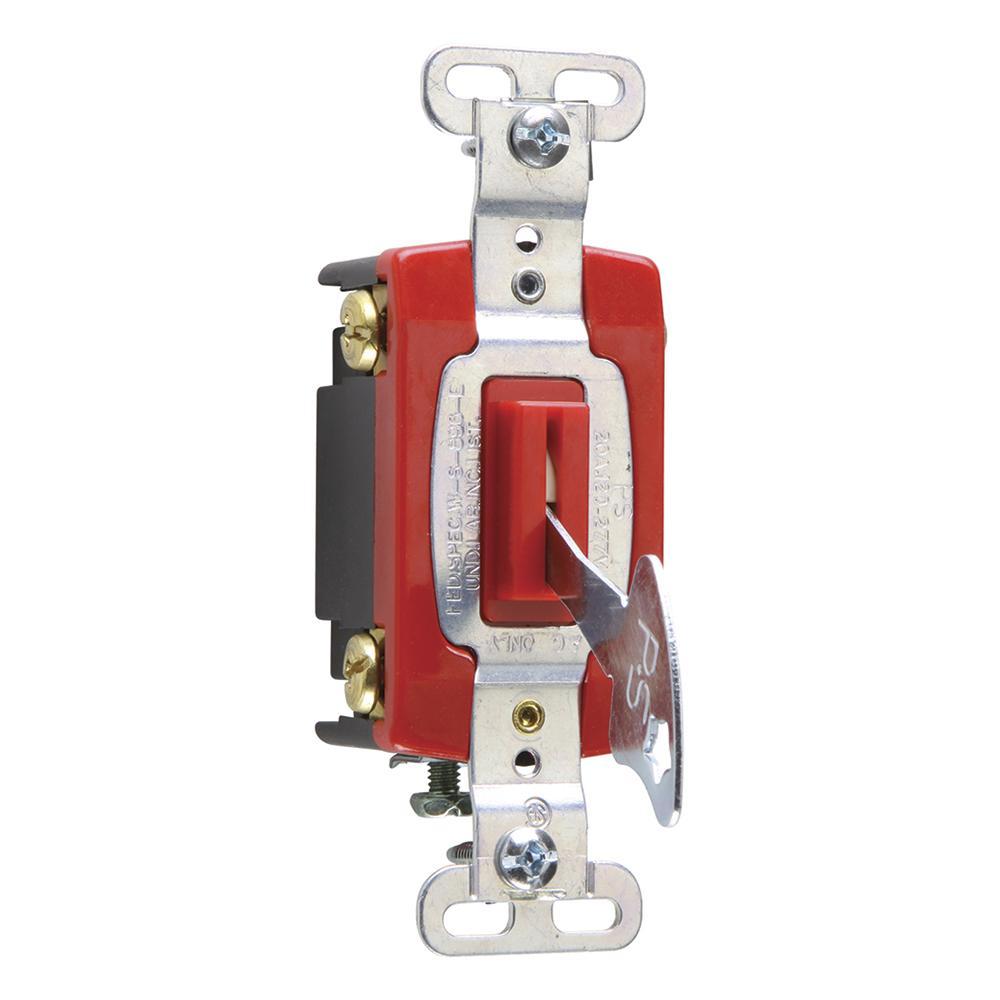

Pass & Seymour® PS20AC4-REDL Extra Heavy Duty Lock Switch, 120/277 V AC, 20 A, 2 hp Power Rating, DPDT Contact
Sku #78500726683
MFG #PS20AC4REDL
Attributes
| Type: | Extra Heavy Duty |
| Amperage Rating: | 20 A |
| Contact Configuration: | DPDT |
| Voltage Rating: | 120/277 V AC |
| Power Rating: | 2 hp |
| Contact Rating: | 20 A at 120/277 V AC |
- Commercial/Residential Applications
- UL 20|CSA C22.2 No. 111
- External screw-pressure-plate back and side wired
- Accepts 14 - 10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast ''make'' and positive ''break'' to minimize arcing
- Heavy-duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of installation
